Non-Isolated Drivers

Driver Components Powered By

20W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 20W (P4856)
  • Input Voltage – 100V - 300V
  • Output Voltage – 35V-90V
  • Output Current – 235mA
  • Efficiency ≥ 88%
  • PFC > 0.95
  • Surge Protection – Upto 3KV
  • THD: Less than 15%
  • Size (L*B*H*) - 67*16.5*12mm
  • Application – Tubelight and Profiles
Download Catalouge

24W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 24w(P4904)
  • Input Voltage – 100V-300V
  • Output Voltage – 40V-80V
  • Output Current – 300mA
  • Efficiency ≥ 85%
  • PFC > 0.95
  • Surge Protection – Upto 3.5kv
  • THD:- Less than 15%
  • Size (L*B*H*) - 74*17*13mm
  • Application – Tubelight and Profiles
Download Catalouge

36W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 36W (P5015)
  • Input Voltage – 100V - 300V
  • Output Voltage – 40V - 80V
  • Output Current - 470mA
  • Efficiency ≥ 88%
  • PFC > 0.95
  • Surge Protection – Upto 4KV
  • Less than 15%
  • Size (L*B*H*) - 155*19.5*13.5mm
  • Application – Tubelight , Profiles
Download Catalouge

8-15W Non Isolated Driver. (HPF)

Driver Details:


  • Wattage – 8-15W (P4834)
  • Input Voltage – 100V - 300V
  • Output Voltage – 24V - 48V
  • Output Current – 300mA
  • Efficiency ≥ 80%
  • PFC > 0.95
  • Surge Protection – Upto 3KV
  • THD: Less than 15%
  • Size (L*B*H*) - 39*24*13mm
  • Application – LED Panel, Downlight , COB Light
Download Catalouge

8-15W 3 in 1 CCT Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 8-15W 3 in 1 CCT (P4855)
  • Input Voltage – 85V - 300V
  • Output Voltage – 24V - 48V
  • Output Current – 300mA
  • Efficiency ≥ 80%
  • PFC > 0.95
  • Surge Protection – Upto 3.5KV
  • THD: Less than 15%
  • Size (L*B*H*) - 51.5*24*16.5mm
  • Application – LED Panel, Downlight , COB Light
Download Catalouge

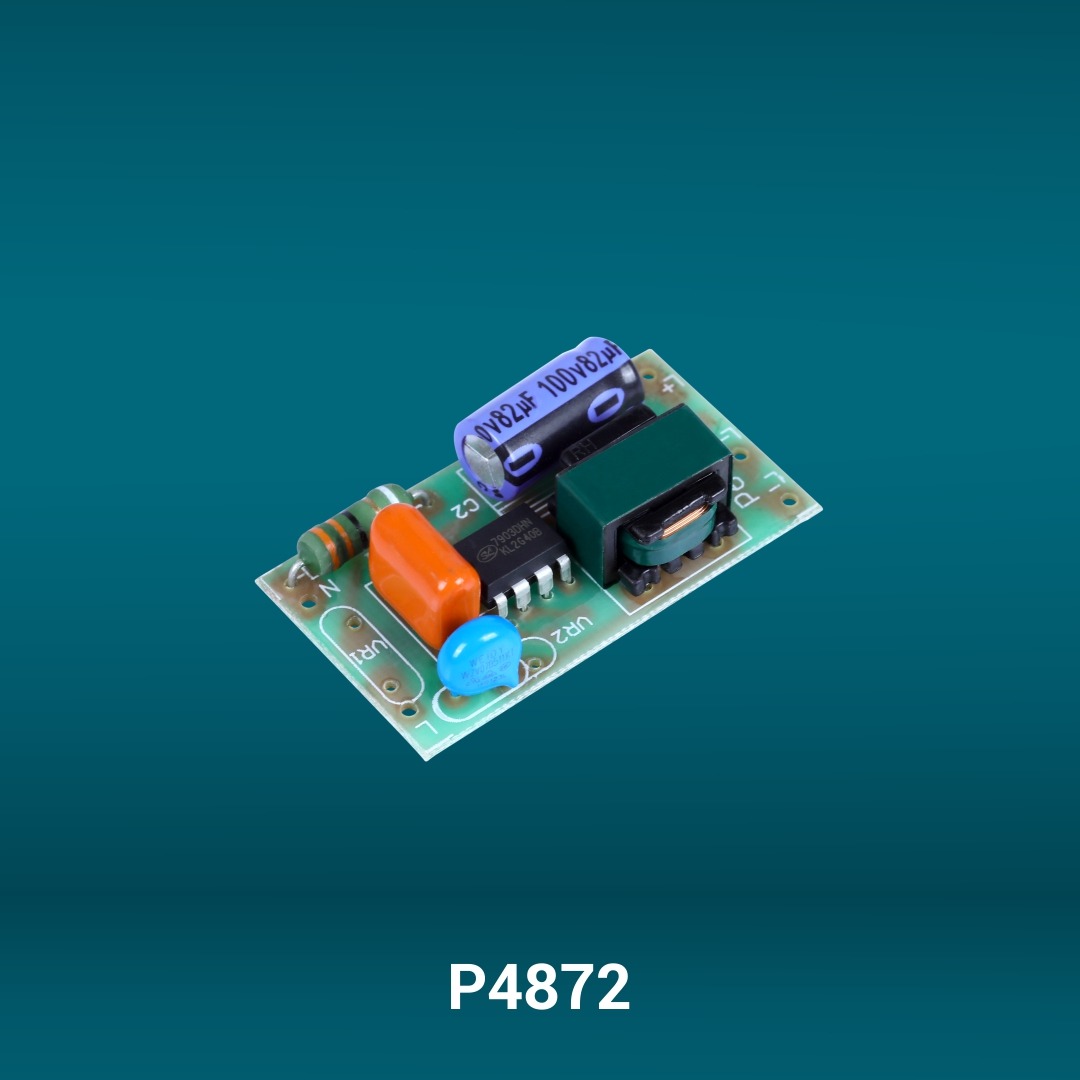

8-24W 3 in 1 CCT Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 8-24W 3 in 1 CCT (P4872)
  • Input Voltage – 85V - 300V
  • Output Voltage – 24V - 78V
  • Output Current – 300mA
  • Efficiency ≥ 85%
  • PFC > 0.95
  • Surge Protection – Upto 3KV
  • THD: Less than 15%
  • Size (L*B*H*) - 45*24*15mm
  • Application – LED Panel, Downlight , COB Light
Download Catalouge

8-24W Non Isolated Driver (LPF)

Driver Details:


  • Wattage – 8-24W (P5030)
  • Input Voltage – 110V-290V
  • Output Voltage – 24V - 80V
  • Output Current – 300mA
  • Efficiency ≥ 92%
  • PFC > 0.5
  • Surge Protection – Upto 2.5KV
  • Size (L*B*H*) - 29.5*21*15mm
  • Application – Panel Lights, Downlights, COB Lights
Download Catalouge

6-15W Non Isolated Driver (LPF)

Driver Details:


  • Wattage – 6-15W (P5031)
  • Input Voltage – 110V-290V
  • Output Voltage – 21V - 48V
  • Output Current – 300mA
  • Efficiency ≥ 92%
  • PFC > 0.5
  • Surge Protection – Upto 2.5KV
  • Size (L*B*H*) - 29.5*21*14mm
  • Application – Panel Lights, Downlights, COB Lights
Download Catalouge

8-18W Non Isolated Driver (LPF)

Driver Details:


  • Wattage – 8-18W (P5032)
  • Input Voltage – 110V-290V
  • Output Voltage – 50V - 120V
  • Output Current – 150mA
  • Efficiency ≥ 92%
  • PFC> 0.5
  • Surge Protection – Upto 2.5KV
  • Size (L*B*H*) - 17.3*24.3*13.5mm
  • Application – Panel Lights, Downlights, COB Lights.
Download Catalouge

3-9W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 3-9W (P2124)
  • Input Voltage – 100V – 300V
  • Output Voltage – 20V – 78V
  • Output Current – 120mA
  • Efficiency ≥ 80%
  • PFC>0.95
  • Surge Protection – 3KV
  • THD: Less than 15%
  • Size (L*B*H*) – 33*19.5*15mm
  • Application – Bulb, Down Light
Download Catalouge

5-10W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 5-10W (P4826)
  • Input Voltage – 100V – 300V
  • Output Voltage – 20V – 78V
  • Output Current – 120mA
  • Efficiency ≥ 80%
  • PFC>0.95
  • Surge Protection – 3KV
  • THD: Less than 15%
  • Size (L*B*H*) – 44.5*16.5*15mm
  • Application – Tube Light
Download Catalouge

20W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 20W (P4703)
  • Input Voltage – 85V – 300V
  • Output Voltage – 40V – 80V
  • Output Current – 240mA
  • Efficiency ≥ 80%
  • PFC>0.95
  • Surge Protection – 3KV
  • THD: Less than 15%
  • Size (L*B*H*) – 38*20*13mm
  • Application – Tube Light Side Cap
Download Catalouge

8-15W 220mA Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 8-15W 220mA (P5003)
  • Input Voltage – 100V - 300V
  • Output Voltage – 40V - 75V
  • Output Current – 220mA
  • Efficiency ≥ 88%
  • PFC>0.95
  • Surge Protection – Upto 3.5KV
  • THD: Less than 15%
  • Size (L*B*H*) - 39*24*13mm
  • Application – PC Panels, Downlights
Download Catalouge

36-50W Non Isolated Driver (HPF)

Driver Details:


  • Wattage – 36-50W (P5091)
  • Input Voltage – 100V - 300V
  • Output Voltage – 40V - 80V
  • Output Current – 560mA
  • Efficiency ≥ 88%
  • PFC>0.95
  • Surge Protection – Upto 3.5KV
  • THD: Less than 15%
  • Size (L*B*H*) - 68*33*15mm
  • Application – Indoor Lights
Download Catalouge
