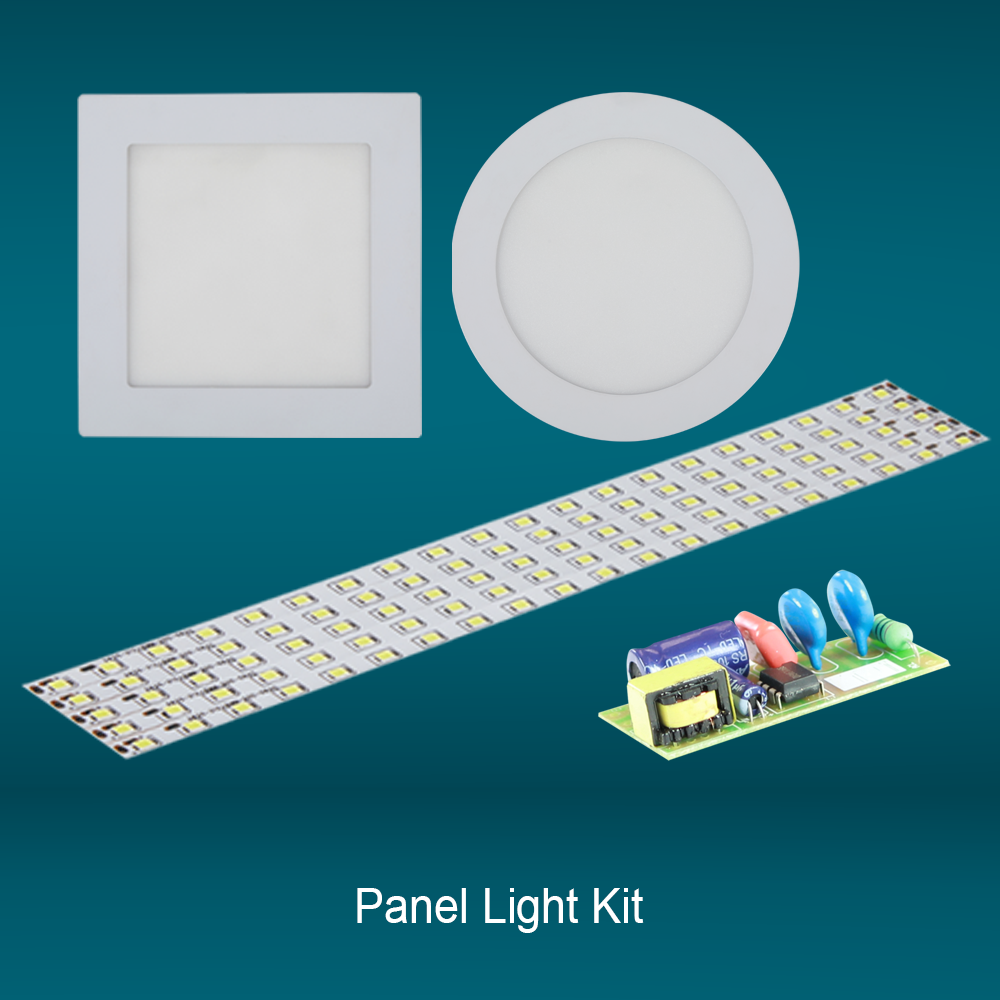

Panel Light Kit
Driver Components Powered By
SLIM 4W ROUND(P3269) & 4W SQUARE (P3270) LED PANEL LIGHT SKD
Housing Details:
| Material - | Aluminum Casting + Plastic |
| Dimensssion - | Outer- 8W RD- Dia 120mm, 8W SQ-120*120mm |
| Cutout- 8W RD- Dia 100mm, 8W SQ-100*100mm | |
| Per Set - | Housing Face + Diffuser + LGP + Reflector Paper + Back Plate + Foam + Screws + Springs + Connector Wire Set |
LED on PCB Details:
| Material - | Flexible |
| Size - | 8W RD-288*6mm , 8W SQ-331*6mm |
| Combination - | 5P8S (40LED) |
Driver Details:
| Wattage - | 8-24W (P3325) |
| Output Voltage - | 16V-90V |
| Output Current - | 300mA |
| Efficiency ≥ 88% | PF > 0.95 |
| Surge Protection - | 4kv |
Download Catalouge
SLIM 12W ROUND(P2172) & 12W SQUARE (P2173) LED PANEL LIGHT SKD
Housing Details:
| Material - | Aluminum Casting + Plastic |
| Dimensssion - | Outer- 12W RD- Dia 145mm, 12W SQ-145*145mm |
| Cutout- 12W RD- Dia 125mm, 12W SQ-125*125mm | |
| Per Set - | Housing Face + Diffuser + LGP + Reflector Paper + Back Plate + Foam + Screws + Springs + Connector Wire Set |
LED on PCB Details:
| Material - | Flexible |
| Size - | 12W RD-366*6mm , 12W SQ-448*6mm |
| Combination - | 5P12S (60LED) |
Driver Details:
| Wattage - | 8-24W (P3325) |
| Output Voltage - | 16V-90V |
| Output Current - | 300mA |
| Efficiency ≥ 88% | PF > 0.95 |
| Surge Protection - | 4kv |
Download Catalouge
SLIM 15W ROUND(P2174) & 15W SQUARE (P2175) LED PANEL LIGHT SKD
Housing Details:
| Material - | Aluminum Casting + Plastic |
| Dimensssion - | Outer- 15W RD- Dia 170mm, 15W SQ-170*170mm |
| Cutout- 15W RD- Dia 145mm, 15W SQ-145*145mm | |
| Per Set - | Housing Face + Diffuser + LGP + Reflector Paper + Back Plate +Foam + Screws + Springs + Connector Wire Set |
LED on PCB Details:
| Material - | Flexible |
| Size - | 15W RD-438*6mm , 15W SQ-525*6mm |
| Combination - | 5P15S (75LED) |
Driver Details:
| Wattage - | 8-24W (P3325) |
| Output Voltage - | 16V-90V |
| Output Current - | 300mA |
| Efficiency ≥ 88% | PF > 0.95 |
| Surge Protection - | 4kv |
Download Catalouge
SLIM 18W ROUND(P2176) & 18W SQUARE (P2177) LED PANEL LIGHT SKD
Housing Details:
| Material - | Aluminum Casting + Plastic |
| Dimensssion - | Outer- 18W RD- Dia 200mm, 18W SQ-200*200mm |
| Cutout- 18W RD- Dia 175mm, 18W SQ-175*175mm | |
| Per Set - | Housing Face + Diffuser + LGP + Reflector Paper + Back Plate + Foam + Screws + Springs + Connector Wire Set |
LED on PCB Details:
| Material - | Flexible |
| Size - | 18W RD-527*6mm , 18W SQ-640*6mm |
| Combination - | 5P18S (90LED) |
Driver Details:
| Wattage - | 8-24W (P3325) |
| Output Voltage - | 16V-90V |
| Output Current - | 300mA |
| Efficiency ≥ 88% | PF > 0.95 |
| Surge Protection - | 4kv |
Download Catalouge
SLIM 22W ROUND(P2178) & 22W SQUARE (P2179) LED PANEL LIGHT SKD
Housing Details:
| Material - | Aluminum Casting + Plastic |
| Dimensssion - | Outer- 22W RD- Dia 225mm, 22W SQ-225*225mm |
| Cutout- 22W RD- Dia 195mm, 22W SQ-195*195mm | |
| Per Set - | Housing Face + Diffuser + LGP + Reflector Paper + Back Plate + Foam + Screws + Springs + Connector Wire Set |
LED on PCB Details:
| Material - | Flexible |
| Size - | 22W RD-527*6mm , 22W SQ-640*6mm |
| Combination - | 5P22S (110LED) |
Driver Details:
| Wattage - | 8-24W (P3325) |
| Output Voltage - | 16V-90V |
| Output Current - | 300mA |
| Efficiency ≥ 88% | PF > 0.95 |
| Surge Protection - | 4kv |
Download Catalouge
