Non-Isolated Drivers
Driver Components Powered By

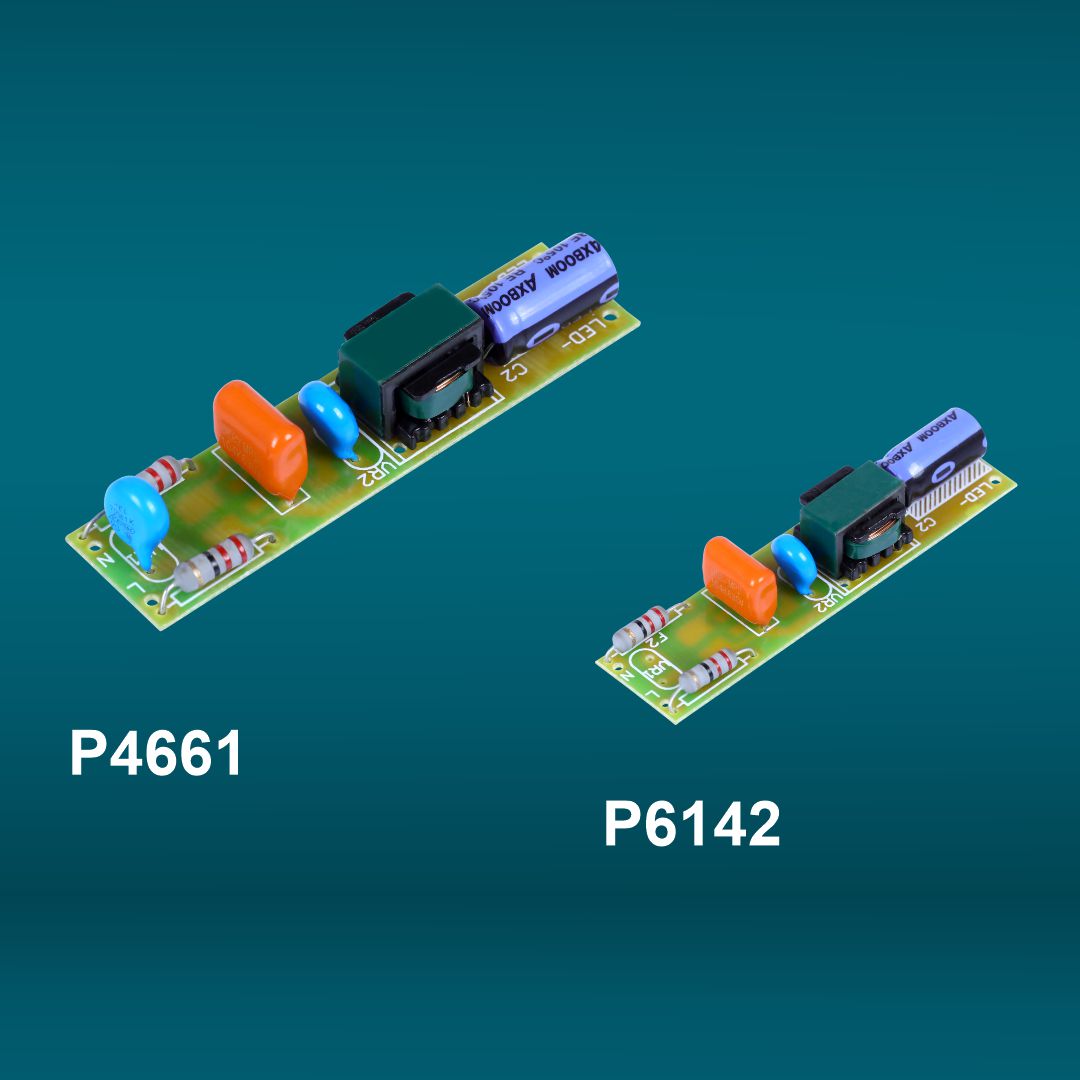

20W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 20W (P4661) & (P6142)
- Input Voltage – 100V - 300V
- Output Voltage – 35V-80V
- Output Current – 235mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3KV & 4KV
- THD: Less than 15%
- Size (L*B*H*) - 67.5*16.5*13mm
- Application – Tubelight and Profiles
Download Catalouge

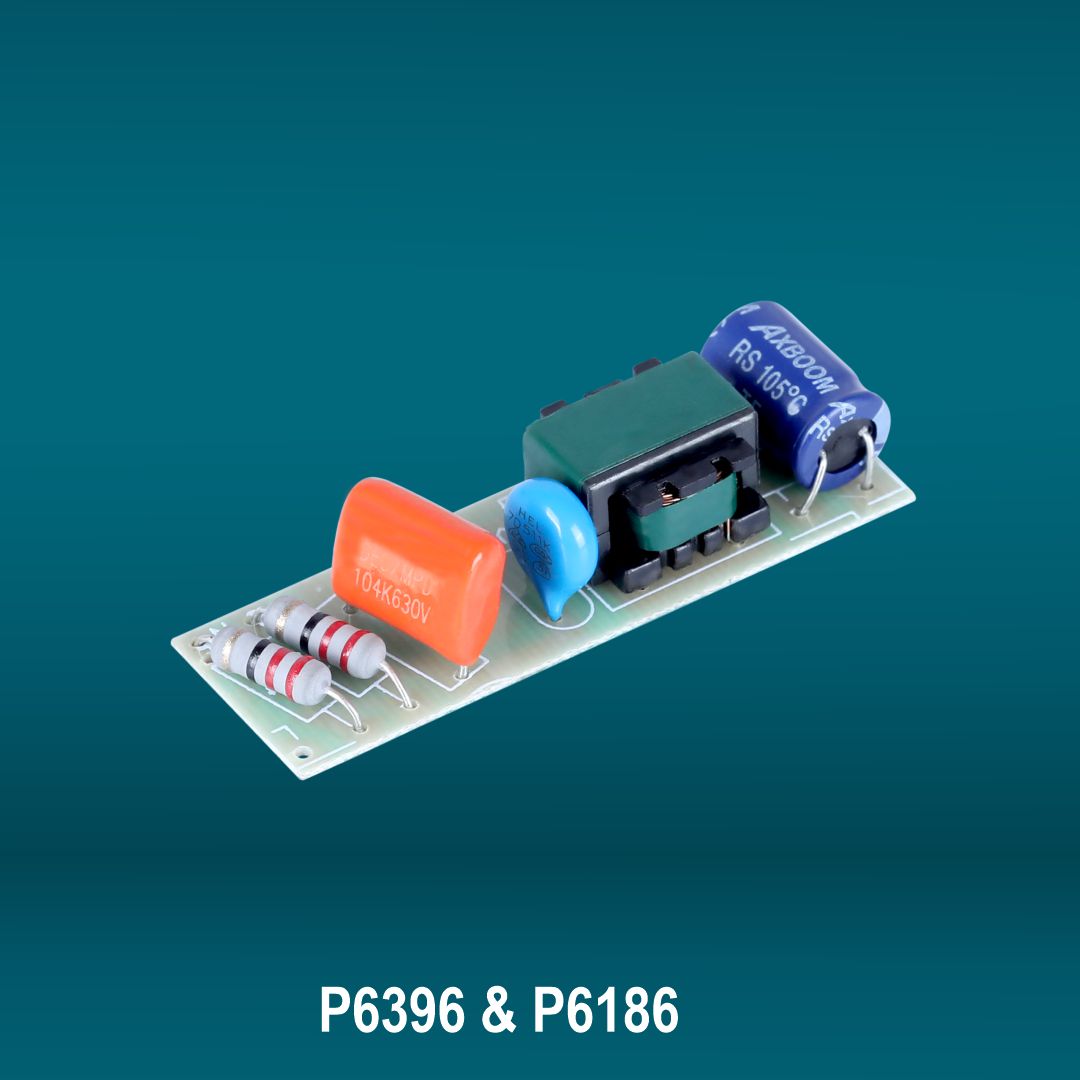

20W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 20W (P6396) & (P6186)
- Input Voltage – 100V - 300V
- Output Voltage – 60V-90V / 35V-80V
- Output Current – 190mA / 235mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3KV
- THD: Less than 15%
- Size (L*B*H*) - 51*16.5*13mm
- Application – Tubelight and Profiles
Download Catalouge

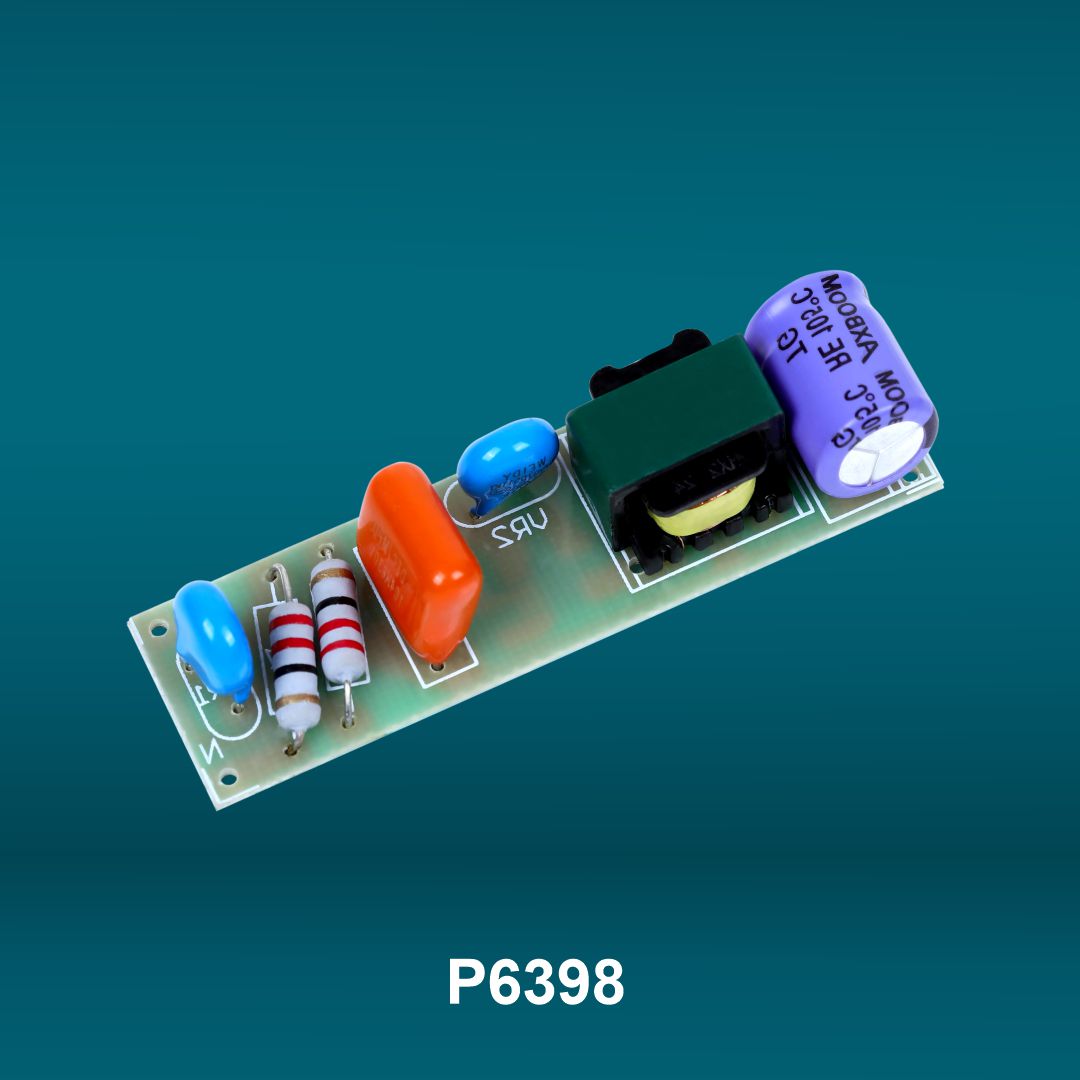

20W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 20W (P6398)
- Input Voltage – 100V - 300V
- Output Voltage – 40V-75V
- Output Current – 240mA
- Efficiency ≥ 88%
- PFC > 0.95
- Surge Protection – Upto 4KV
- THD: Less than 15%
- Size (L*B*H*) - 58.5*16.5*13mm
- Application – Tubelight and Profiles
Download Catalouge

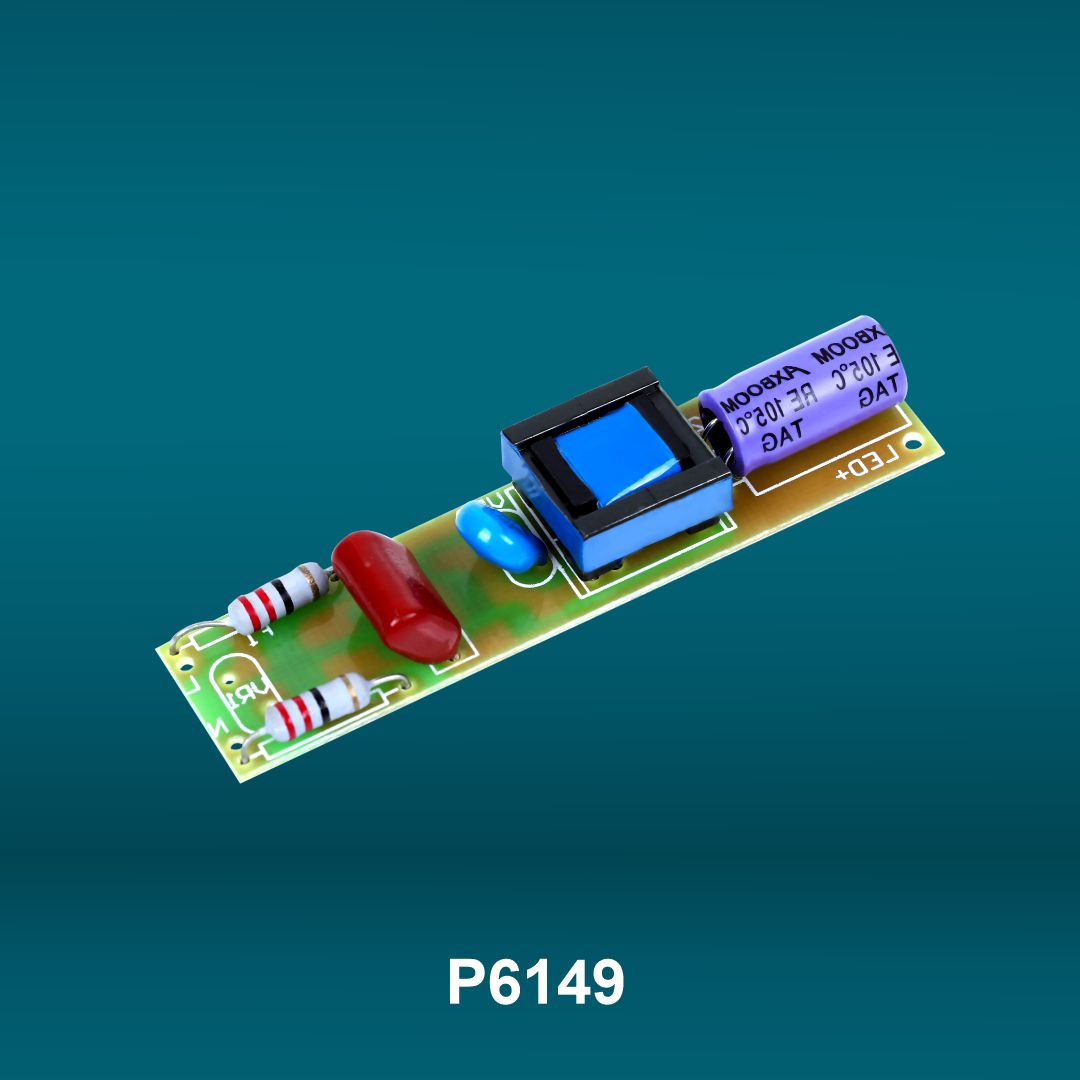

20W EPC13 Non Isolated Driver (HPF)
Driver Details:
- Wattage – 20W (P6149)
- Input Voltage – 100V - 300V
- Output Voltage – 35V-80V
- Output Current – 235mA
- Efficiency ≥ 80%
- PFC > 0.95
- Surge Protection – Upto 3KV
- THD: Less than 15%
- Size (L*B*H*) - 67.5*16.5*13mm
- Application – Tubelight and Profiles
Download Catalouge
22W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 22W (P4909)
- Input Voltage – 100V – 300V
- Output Voltage – 30V – 80V
- Output Current – 260mA
- Efficiency ≥ 85%
- PFC> 0.95
- Surge Protection – 4KV
- THD: Less than 15%
- Size (L*B*H*) – 74*17*13mm
- Application – Tubelight, Profile
Download Catalouge

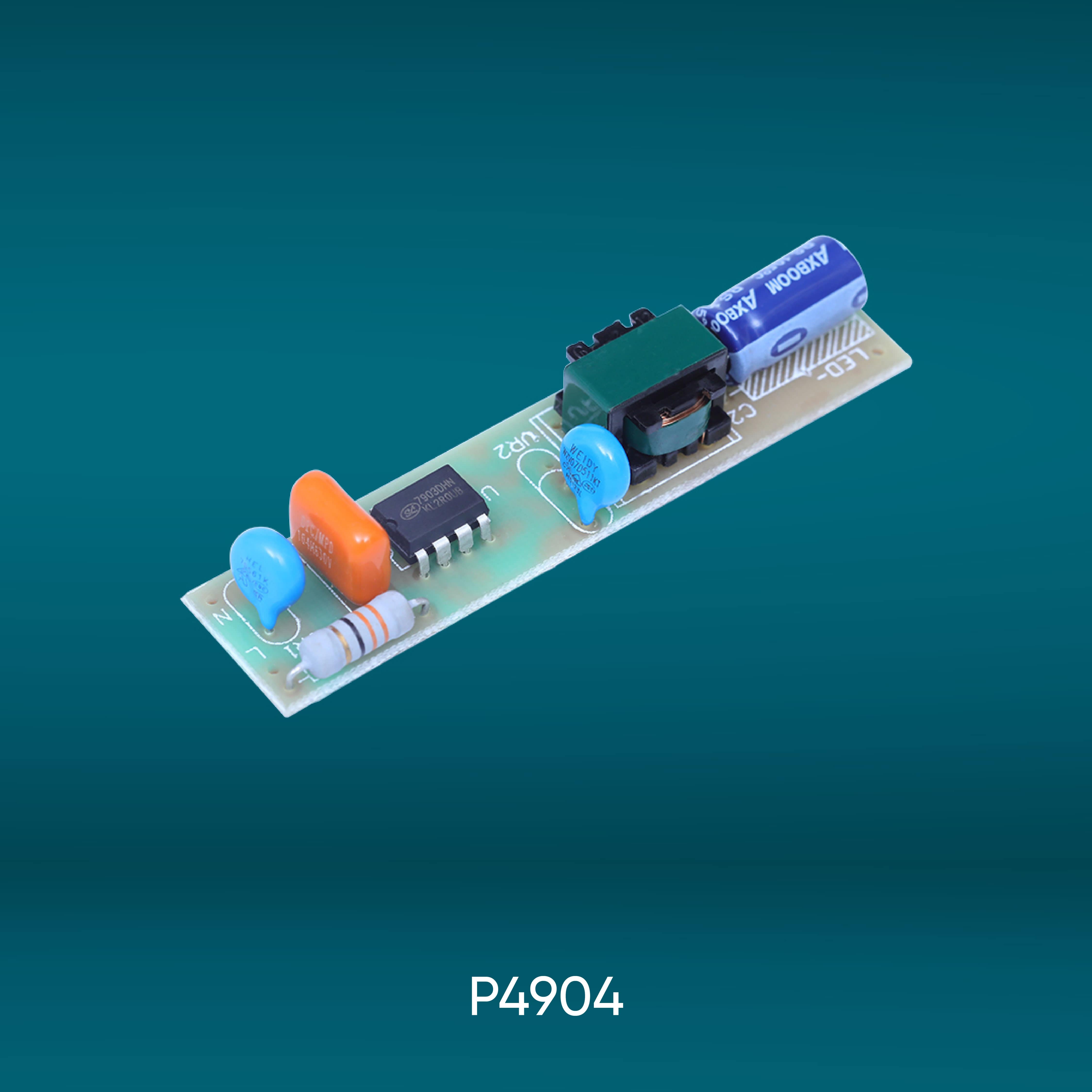

24W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 24w(P4904)
- Input Voltage – 100V-300V
- Output Voltage – 40V-80V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3.5KV
- THD:- Less than 15%
- Size (L*B*H*) - 74*17*13mm
- Application – Tubelight and Profiles
Download Catalouge

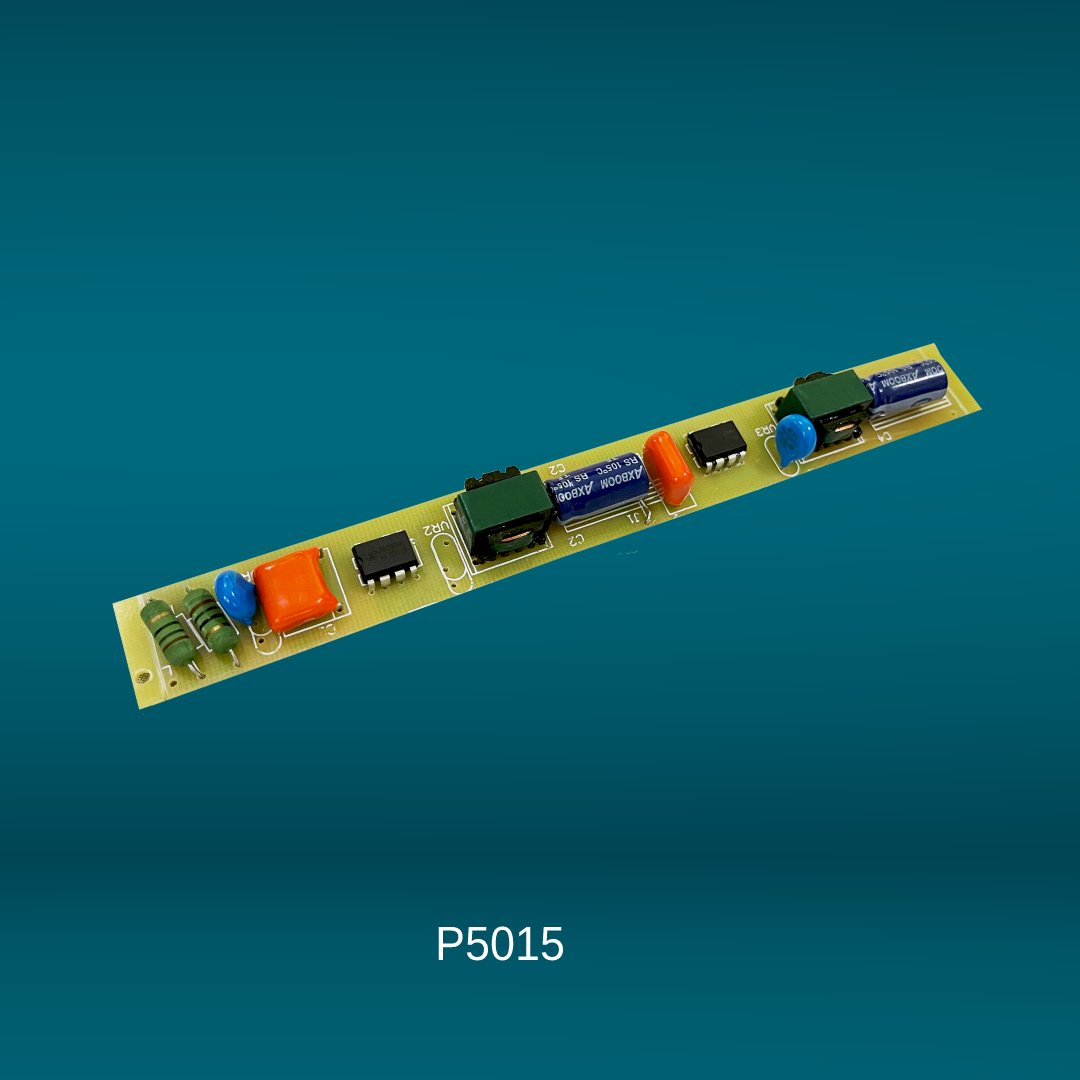

36W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 36W (P5015)
- Input Voltage – 100V - 300V
- Output Voltage – 40V - 80V
- Output Current - 470mA
- Efficiency ≥ 88%
- PFC > 0.95
- Surge Protection – Upto 4KV
- Less than 15%
- Size (L*B*H*) - 155*19.5*13.5mm
- Application – Tubelight , Profiles
Download Catalouge
36W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 36W (P6390)
- Input Voltage – 100V - 300V
- Output Voltage – 40V - 80V
- Output Current - 470mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 4KV
- Less than 15%
- Size (L*B*H*) - 122*18*13mm
- Application – Tubelight , Profiles
Download Catalouge

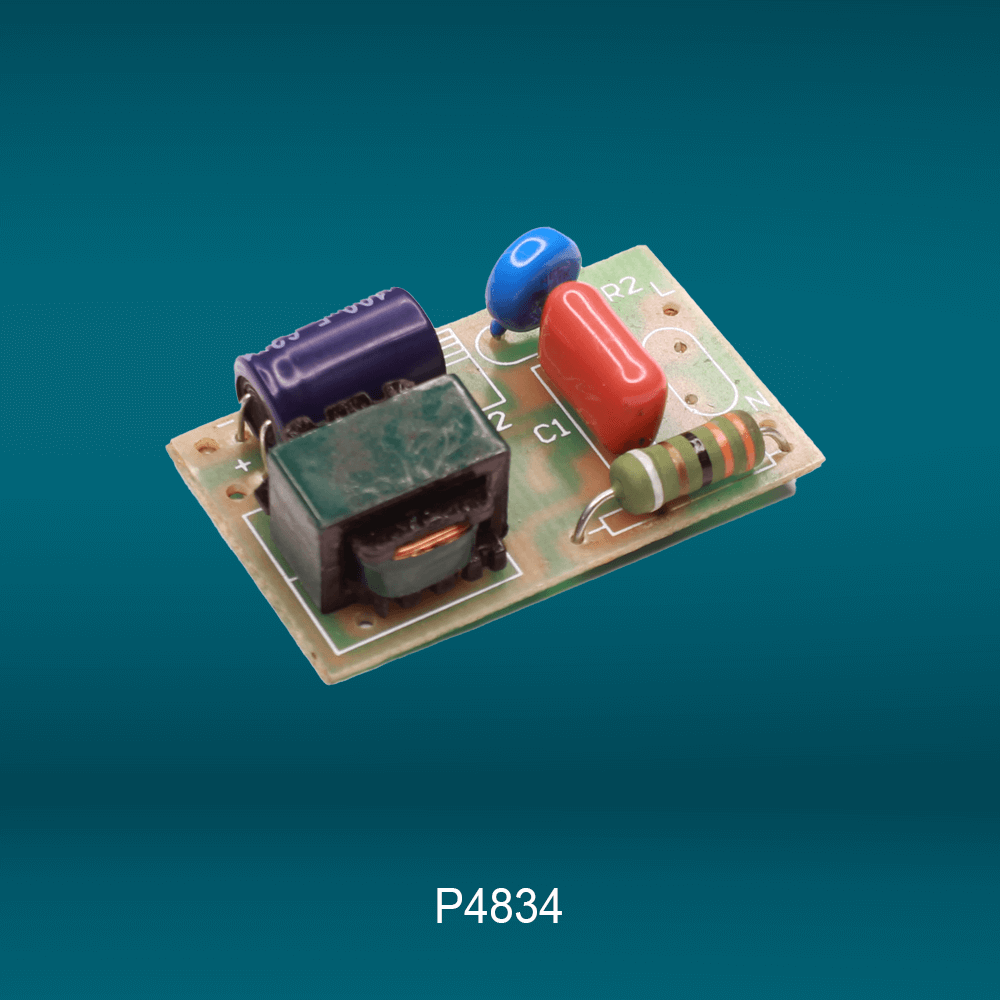

8-15W Non Isolated Driver. (HPF)
Driver Details:
- Wattage – 8-15W (P4834)
- Input Voltage – 100V - 300V
- Output Voltage – 24V - 48V
- Output Current – 300mA
- Efficiency ≥ 80%
- PFC > 0.95
- Surge Protection – Upto 3KV
- THD: Less than 15%
- Size (L*B*H*) - 39*24*13mm
- Application – LED Panel, Downlight , COB Light
Download Catalouge

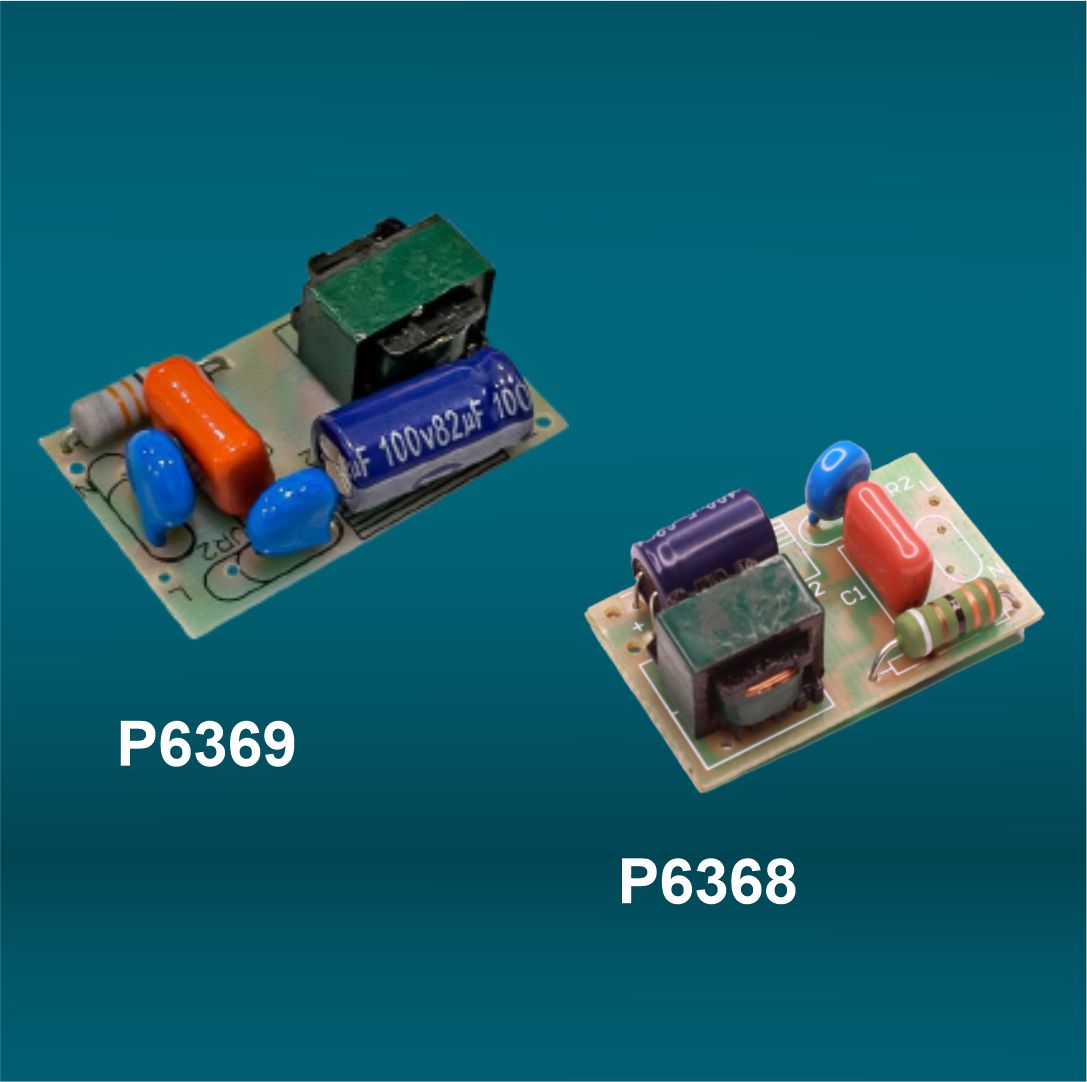

8-22W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 8-24W (P6368) & (P6369)
- Input Voltage – 100V - 300V
- Output Voltage – 24V - 80V
- Output Current – 280mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3KV & 3.5KV
- THD: Less than 15%
- Size (L*B*H*) - 39*24*13mm
- Application – LED Panel, Downlight , COB Light
Download Catalouge

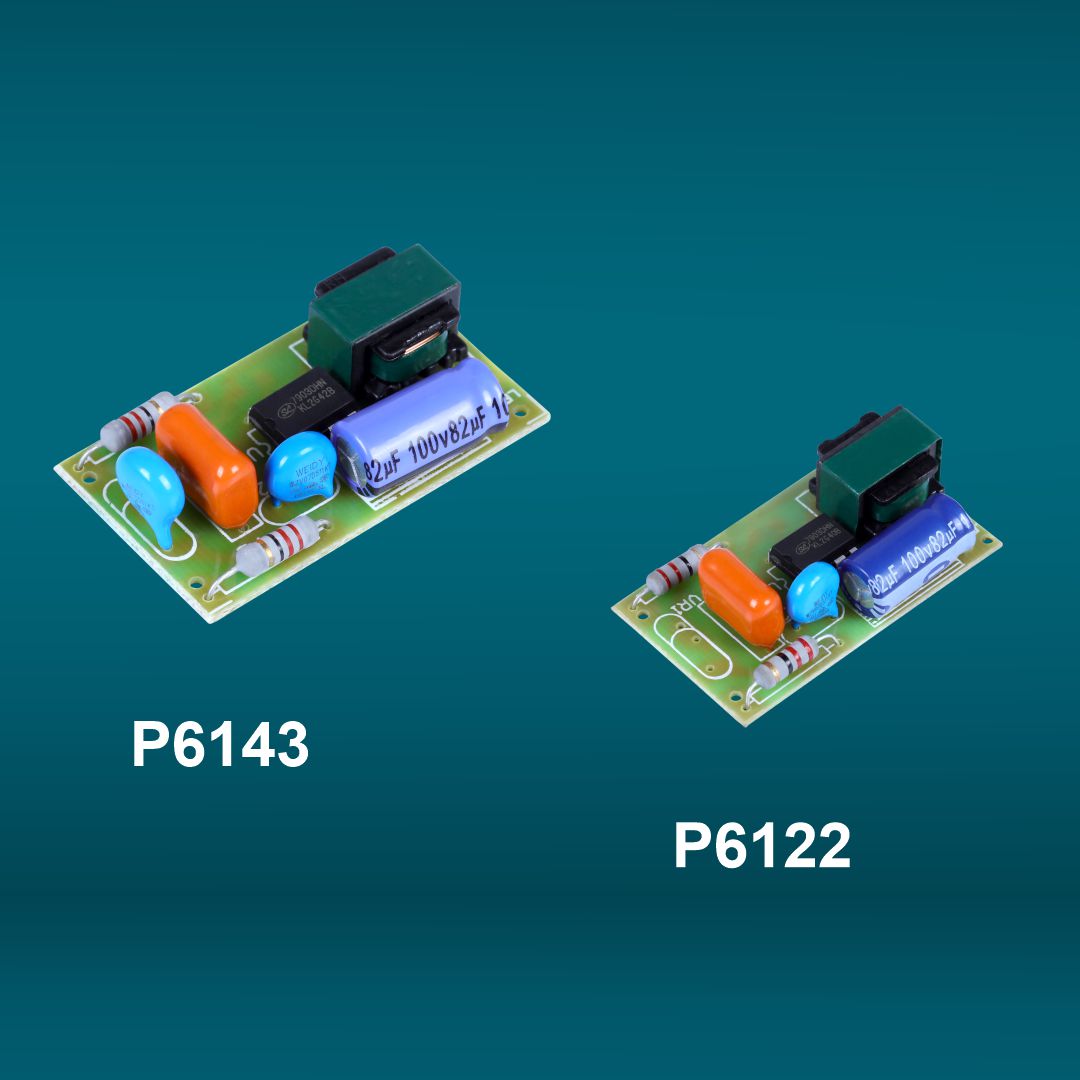

8-24W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 8-24W (P6143) & (P6122)
- Input Voltage – 100V - 300V
- Output Voltage – 24V - 80V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3.5kv & 4kv THD: Less than 15%
- Size (L*B*H*) - 44.5*25.5*15mm
- Application – LED Panel, Downlight , COB Light
Download Catalouge

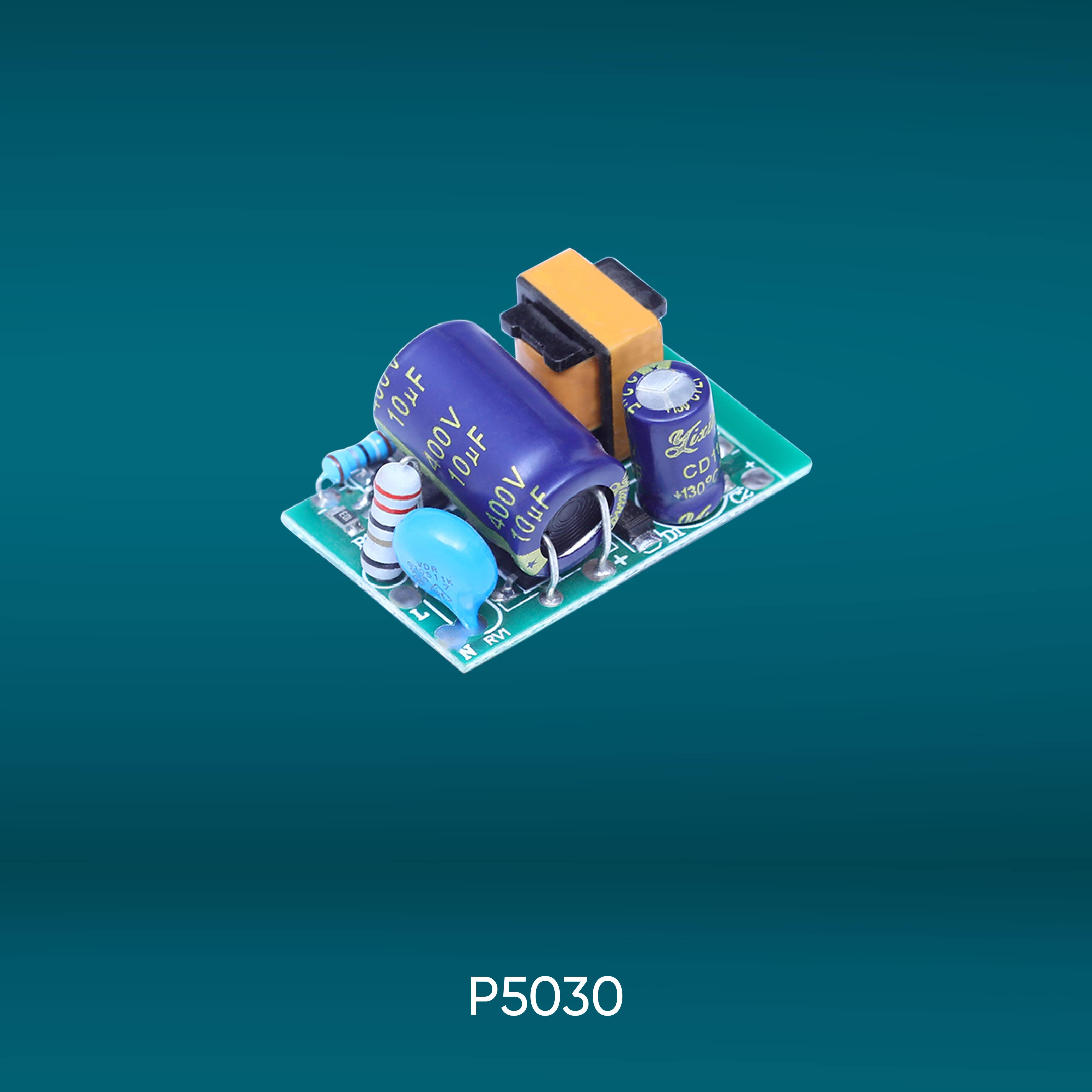

8-24W Non Isolated Driver (LPF)
Driver Details:
- Wattage – 8-24W (P5030)
- Input Voltage – 110V-290V
- Output Voltage – 24V - 80V
- Output Current – 300mA
- Efficiency ≥ 92%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Size (L*B*H*) - 29.5*21*15mm
- Application – Panel Lights, Downlights, COB Lights
Download Catalouge

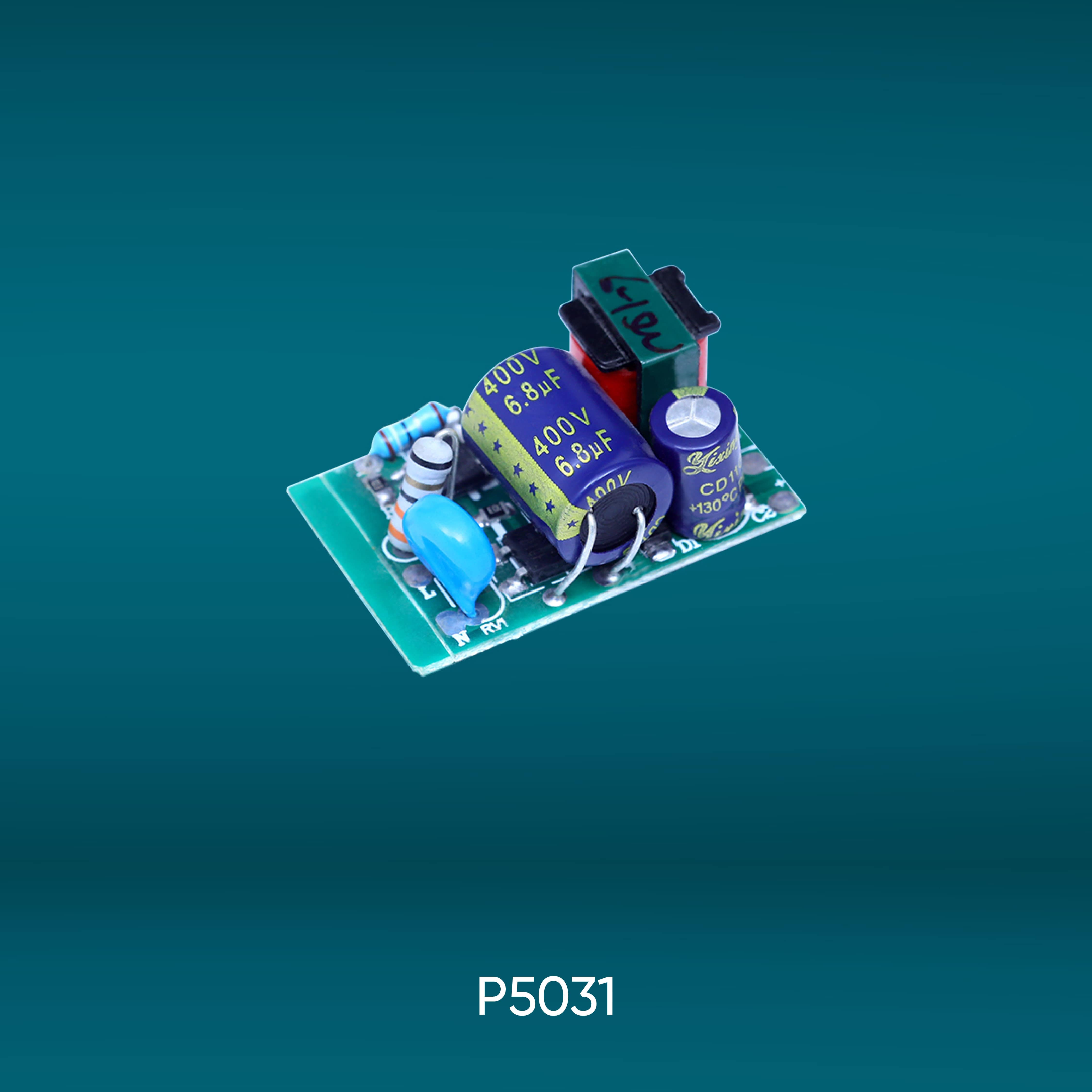

6-15W Non Isolated Driver (LPF)
Driver Details:
- Wattage – 6-15W (P5031)
- Input Voltage – 110V-290V
- Output Voltage – 21V - 48V
- Output Current – 300mA
- Efficiency ≥ 92%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Size (L*B*H*) - 29.5*21*14mm
- Application – Panel Lights, Downlights, COB Lights
Download Catalouge

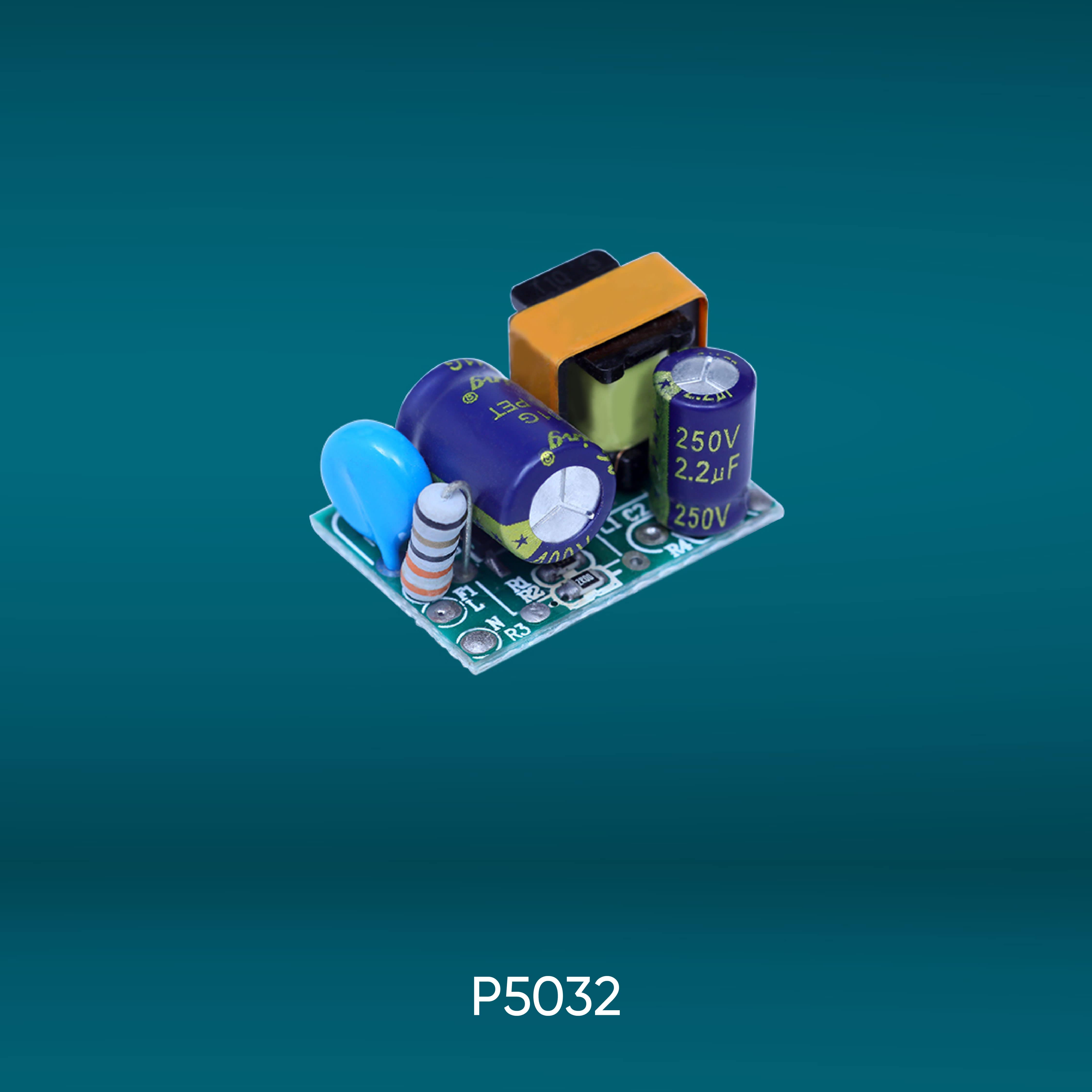

8-18W Non Isolated Driver (LPF)
Driver Details:
- Wattage – 8-18W (P5032)
- Input Voltage – 110V-290V
- Output Voltage – 50V - 120V
- Output Current – 150mA
- Efficiency ≥ 92%
- PFC> 0.5
- Surge Protection – Upto 2.5KV
- Size (L*B*H*) - 17.3*24.3*13.5mm
- Application – Panel Lights, Downlights, COB Lights.
Download Catalouge

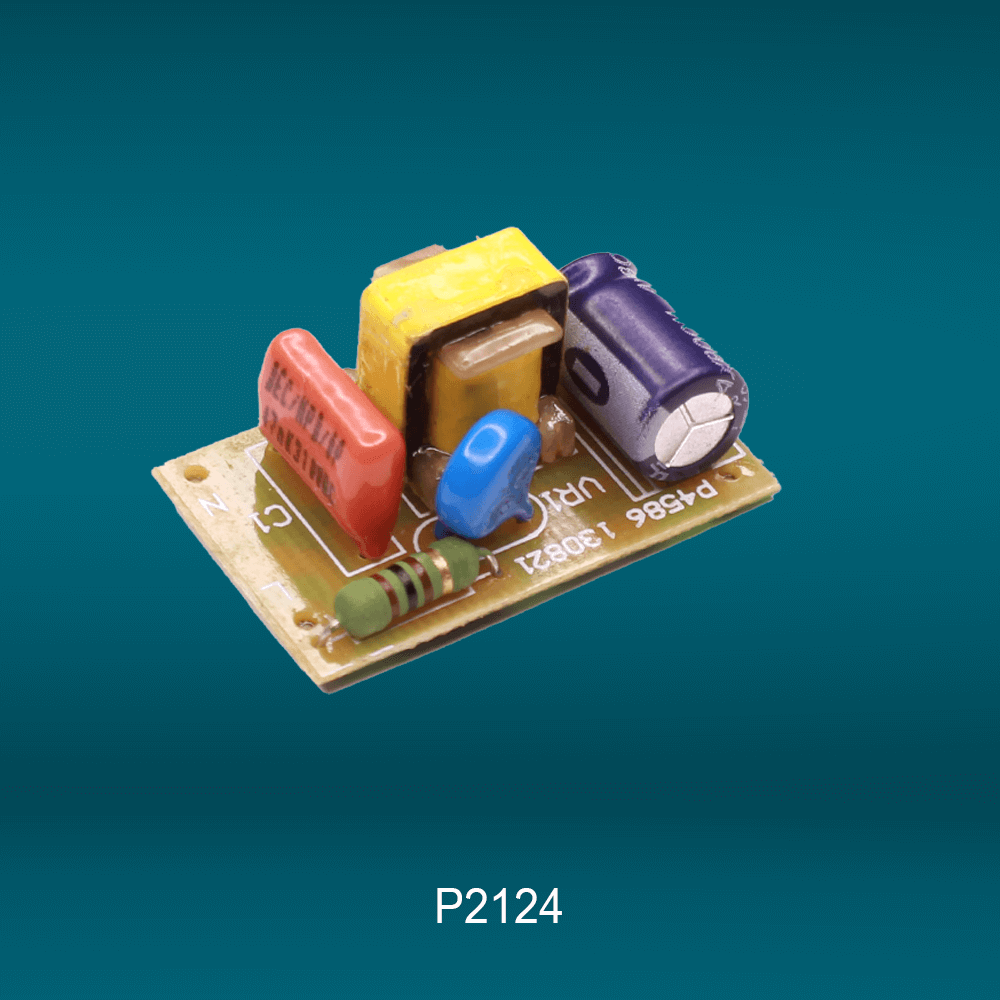

3-9W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 3-9W (P2124)
- Input Voltage – 100V – 300V
- Output Voltage – 20V – 78V
- Output Current – 120mA
- Efficiency ≥ 80%
- PFC>0.95
- Surge Protection – 3KV
- THD: Less than 15%
- Size (L*B*H*) – 33*19.5*15mm
- Application – Bulb, Down Light
Download Catalouge

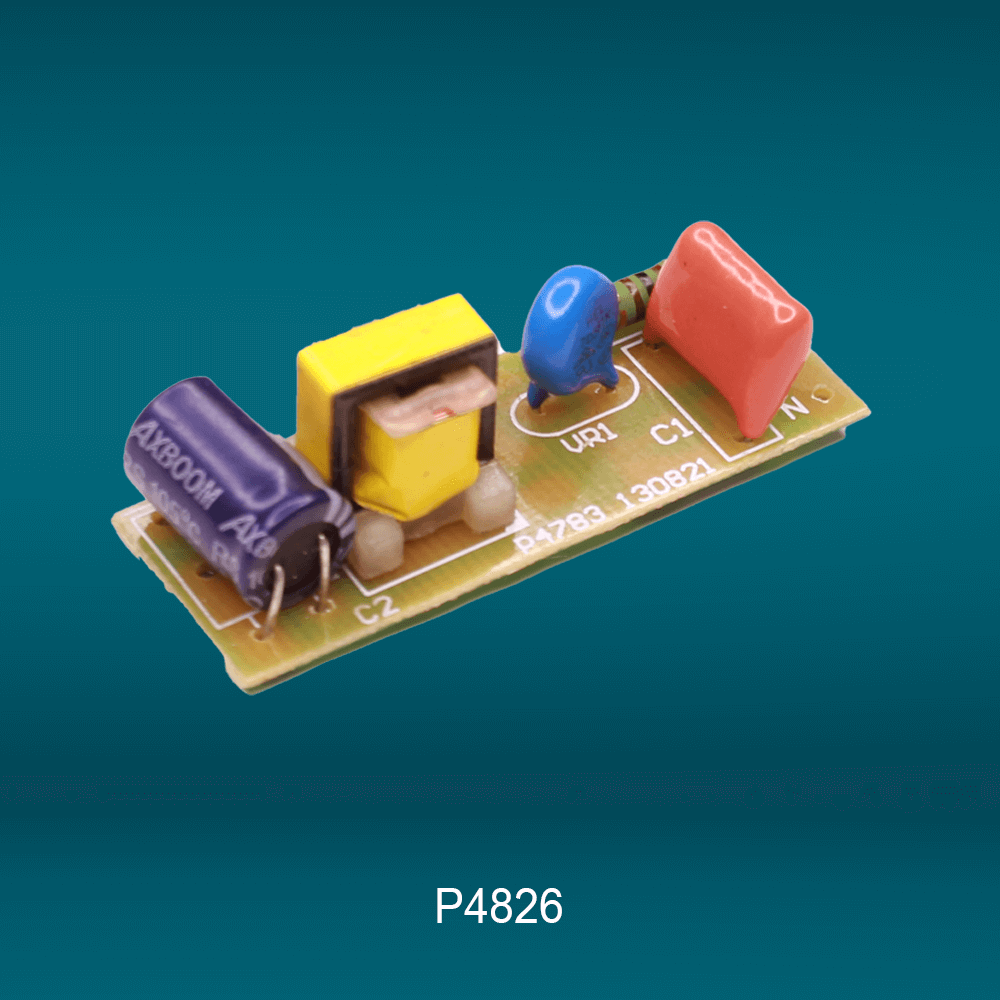

5-10W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 5-10W (P4826)
- Input Voltage – 100V – 300V
- Output Voltage – 20V – 78V
- Output Current – 120mA
- Efficiency ≥ 80%
- PFC>0.95
- Surge Protection – 3KV
- THD: Less than 15%
- Size (L*B*H*) – 44.5*16.5*15mm
- Application – Tube Light
Download Catalouge

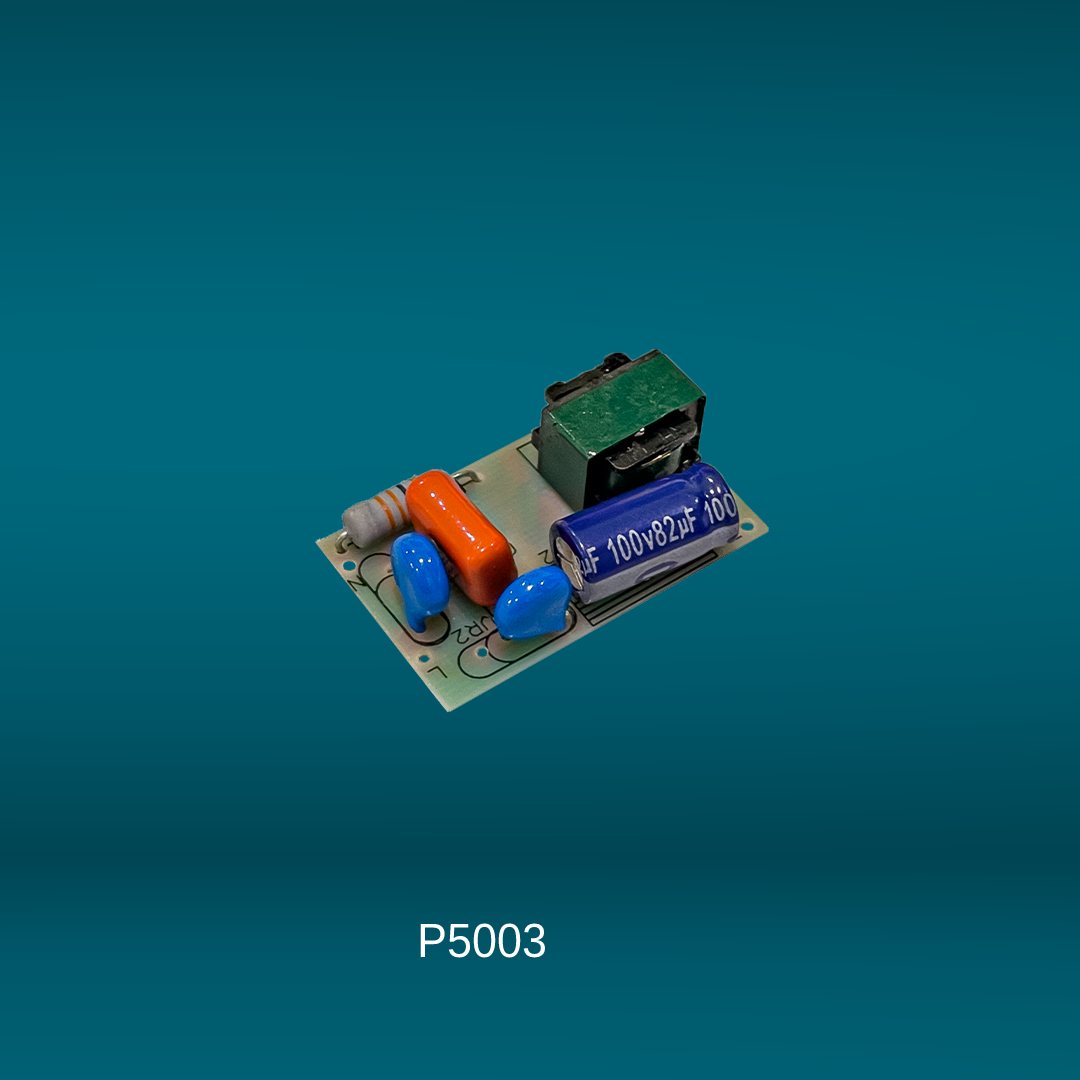

8-15W 220mA Non Isolated Driver (HPF)
Driver Details:
- Wattage – 8-15W 220mA (P5003)
- Input Voltage – 100V - 300V
- Output Voltage – 40V - 75V
- Output Current – 220mA
- Efficiency ≥ 88%
- PFC>0.95
- Surge Protection – Upto 3.5KV
- THD: Less than 15%
- Size (L*B*H*) - 39*24*13mm
- Application – PC Panels, Downlights
Download Catalouge

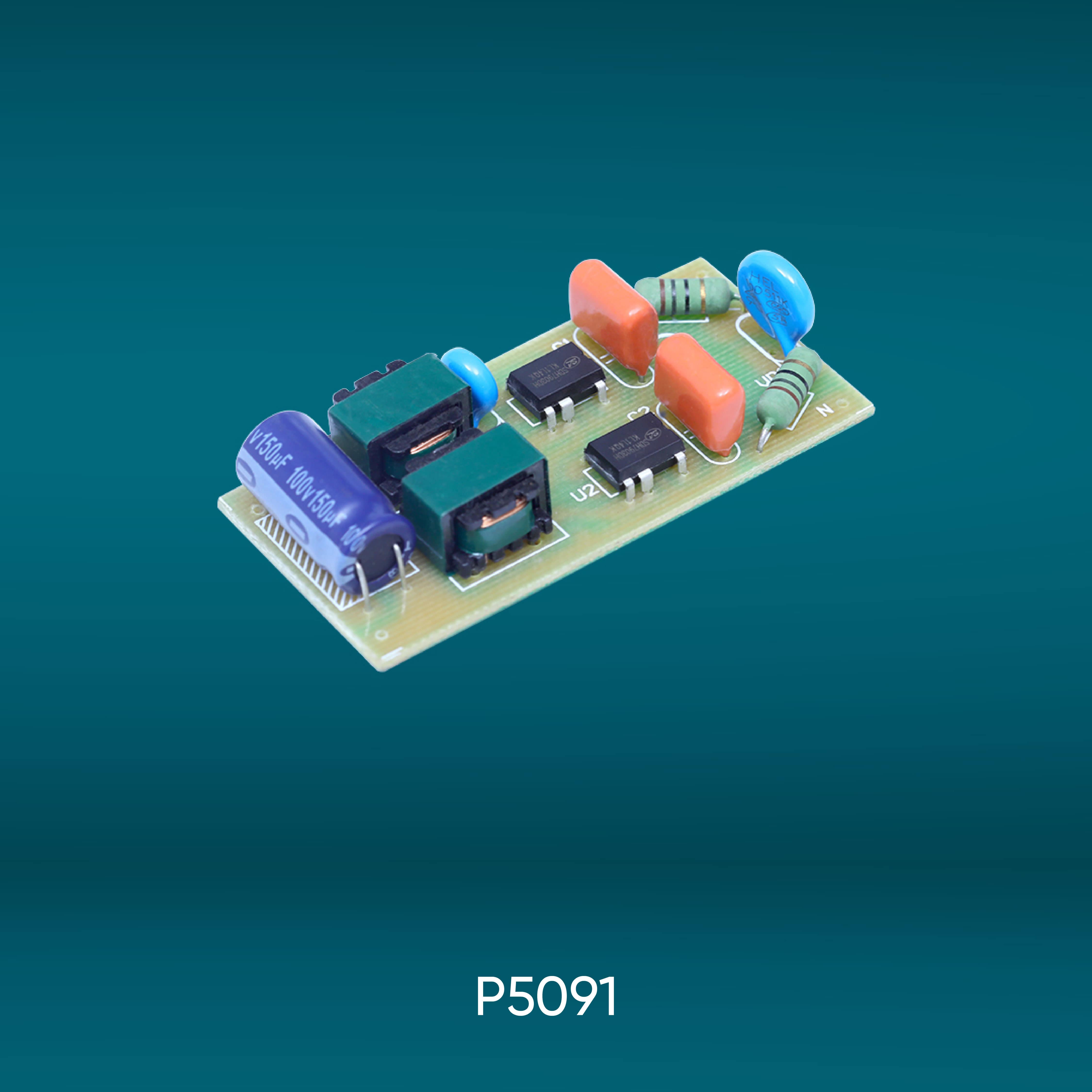

36-50W Non Isolated Driver (HPF)
Driver Details:
- Wattage – 36-50W (P5091)
- Input Voltage – 100V - 300V
- Output Voltage – 40V - 80V
- Output Current – 560mA
- Efficiency ≥ 88%
- PFC>0.95
- Surge Protection – Upto 3.5KV
- THD: Less than 15%
- Size (L*B*H*) - 68*33*15mm
- Application – Indoor Lights
Download Catalouge
