Isolated HPF 36V Series
Driver Components Powered By
6W Isolated HPF Driver
Driver Details:
- Wattage – 6W (P6486)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 150mA
- Efficiency ≥ 70%
- PFC > 0.95
- THD < 25%
- Surge Protection – Upto 3KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 46*19*21mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge
8W Isolated HPF Driver
Driver Details:
- Wattage – 8W (P6443)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 200mA
- Efficiency ≥ 80%
- PFC > 0.95
- THD < 20%
- Surge Protection – Upto 3KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 46*19*17mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge
12W Isolated HPF Driver
Driver Details:
- Wattage – 12W (P6180)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 56V
- Output Current – 300mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 57*26*18mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge
15W Isolated HPF Driver
Driver Details:
- Wattage – 15W (P6444)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 350mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 57*26*18mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge

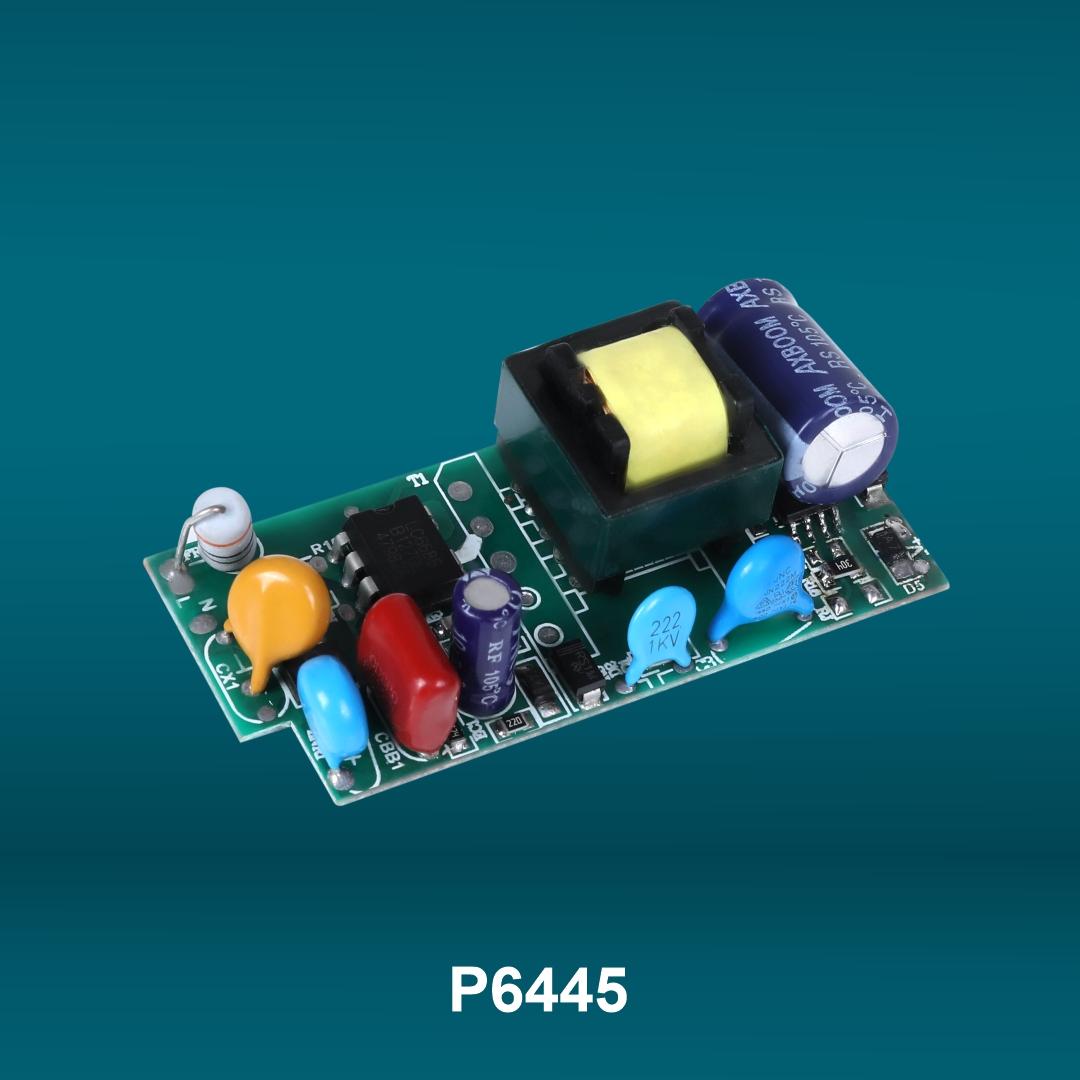

18W Isolated HPF Driver
Driver Details:
- Wattage – 18W (P6445)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 400mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 57*26*18mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge
20W Isolated HPF Driver
Driver Details:
- Wattage – 20W (P6446)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 500mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 57*26*18mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge

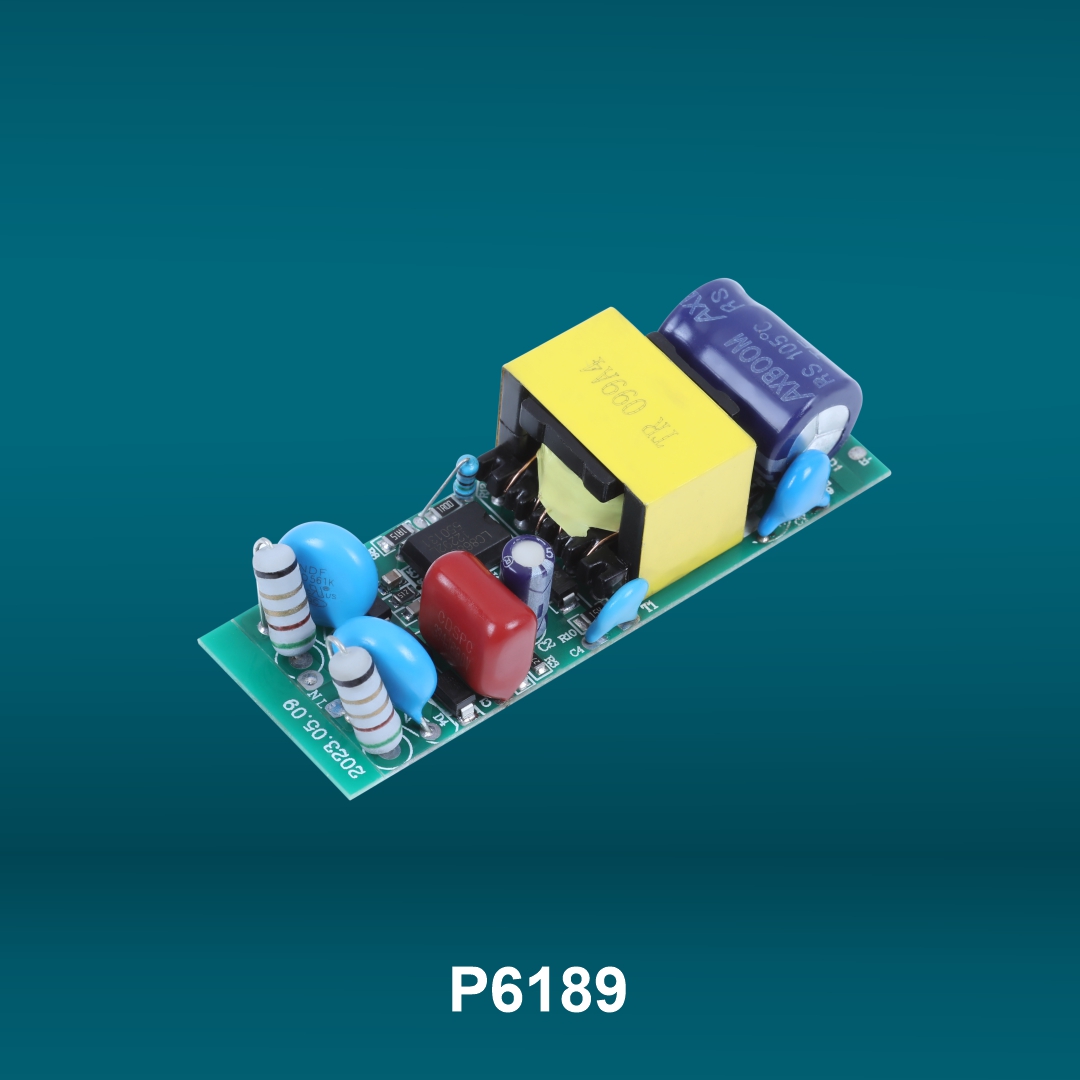

24-30W Isolated HPF Driver
Driver Details:
- Wattage – 24-30W (P6189)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 30V - 50V
- Output Current – 600mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 5KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 46*19*21mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge

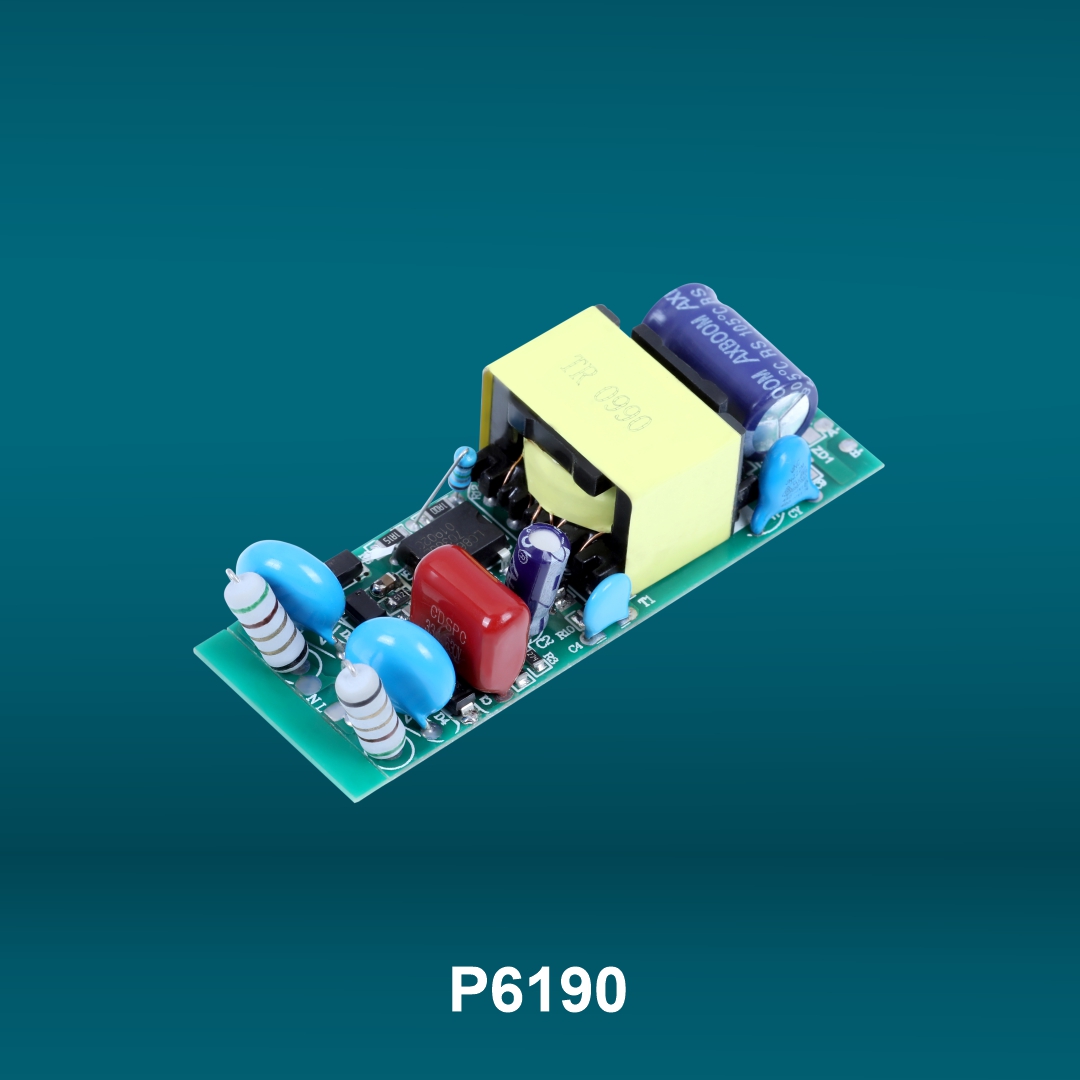

36W Isolated HPF Driver
Driver Details:
- Wattage – 36W (P6190)
- Input Voltage – 85V - 265V AC 50-60Hz
- Output Voltage – 34V - 40V
- Output Current – 850mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 5KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 65*24*18mm
- Application – Cob Light, Downlight, Track Light, Outdoor Light.
Download Catalouge
