Isolated Drivers
Driver Components Powered By

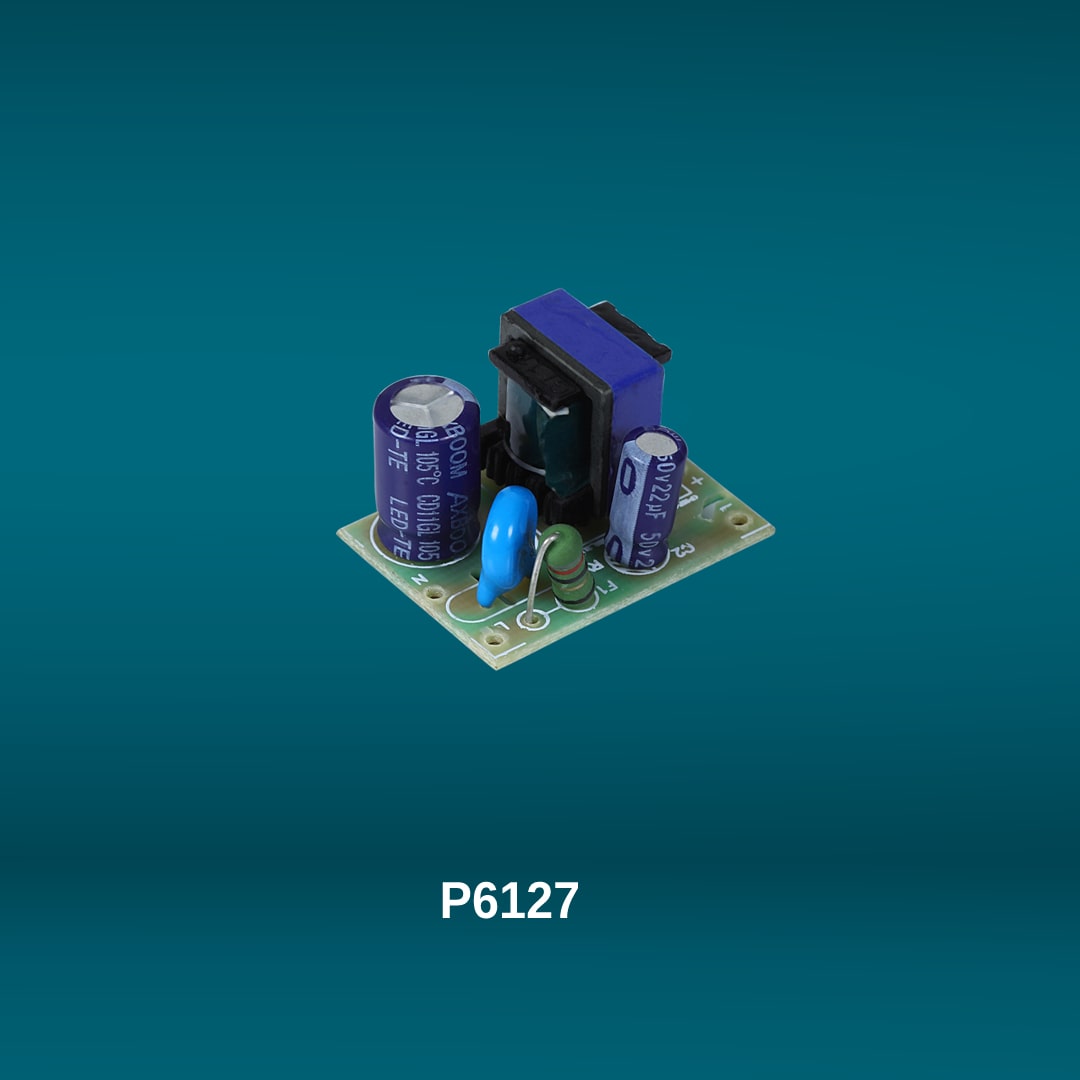

4-7W Isolated Driver (LPF)
Driver Details:
- Wattage – 4-7W (P6127)
- Input Voltage – 100v – 300v
- Output Voltage – 10v – 21v
- Output Current – 300mA
- Efficiency ≥ 75%
- PFC > 0.5
- Surge Protection – Upto 3.5kv
- Length(L*B*H*) – 28.5*21.5*18mm
- Application – LED Panel, Down Light, COB Light.
Download Catalouge

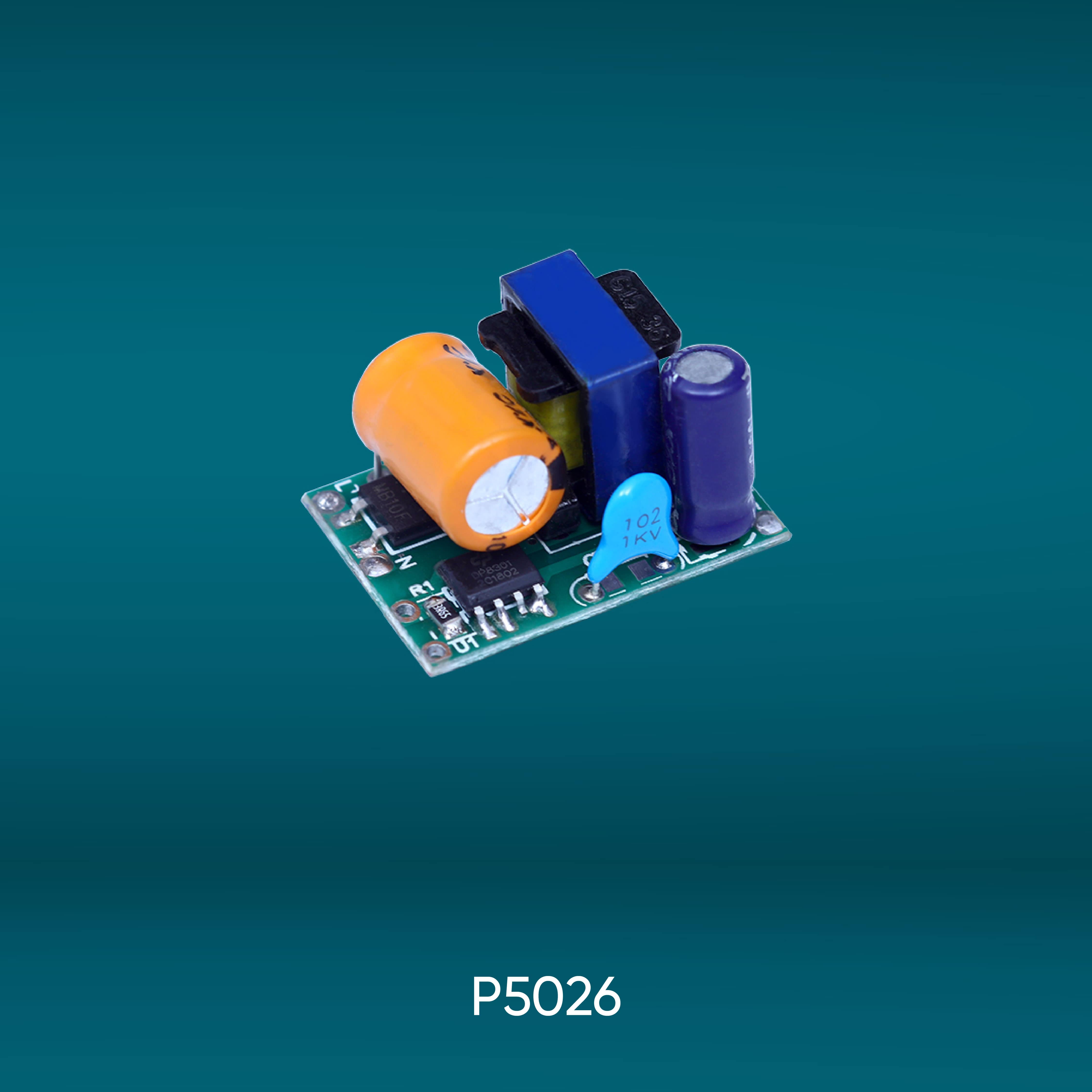

3W Isolated Driver (LPF)
Driver Details:
- Wattage – 3W (P5026)
- Input Voltage – 85V - 265V
- Output Voltage – 6V - 11V
- Output Current – 240mA
- Efficiency ≥ 80%
- PFC > 0.5
- Surge Protection – NA
- Length(L*B*H*) – 24*17*14mm
- Application – LED Panel, Down Light, COB Light.
Download Catalouge

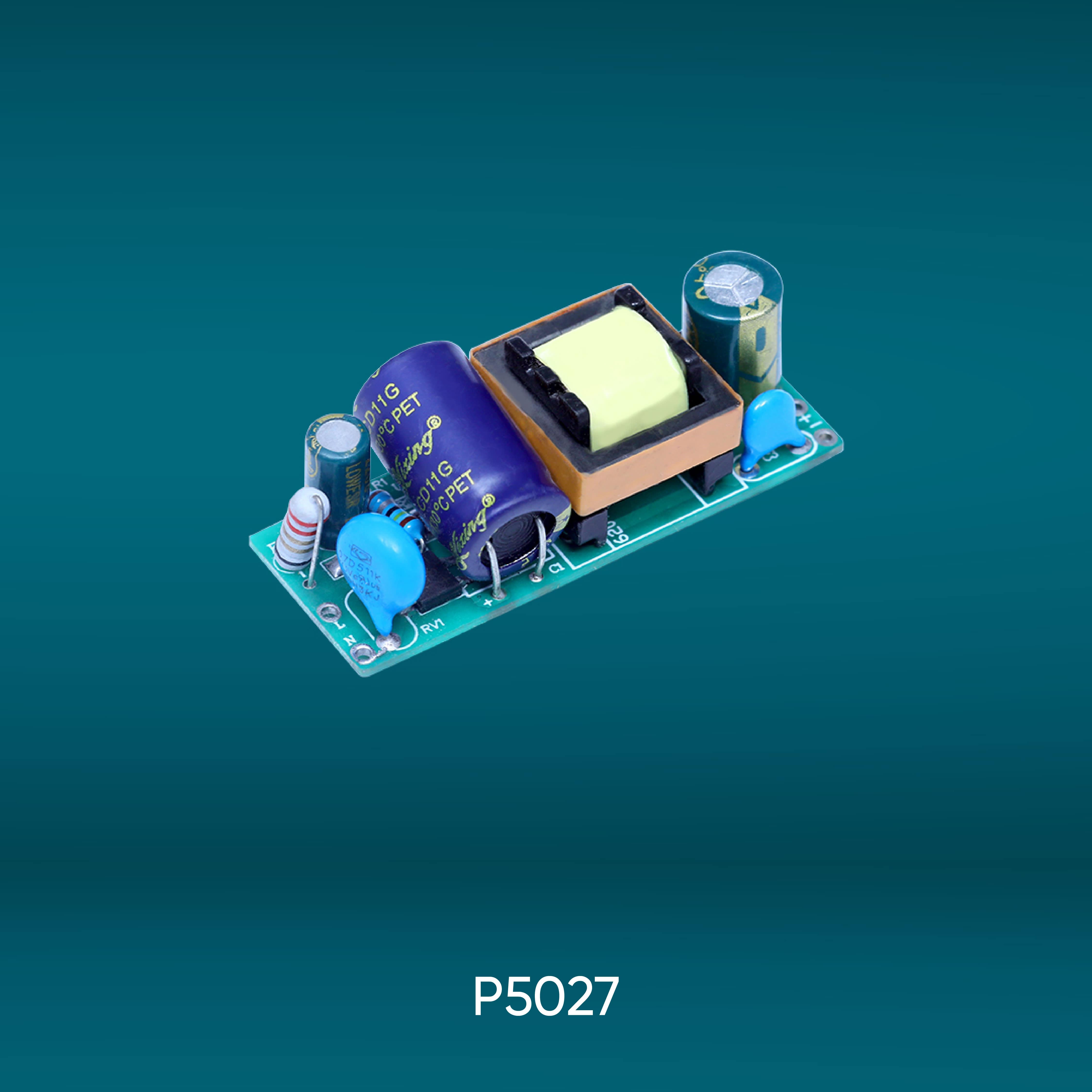

8-12W Isolated Driver (LPF)
Driver Details:
- Wattage – 8-12W (P5027)
- Input Voltage – 85V - 300V
- Output Voltage – 24V - 40V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Length(L*B*H*) – 43.5*17.5*15.5mm
- Application – Panel Lights, Downlights, COB Lights
Download Catalouge

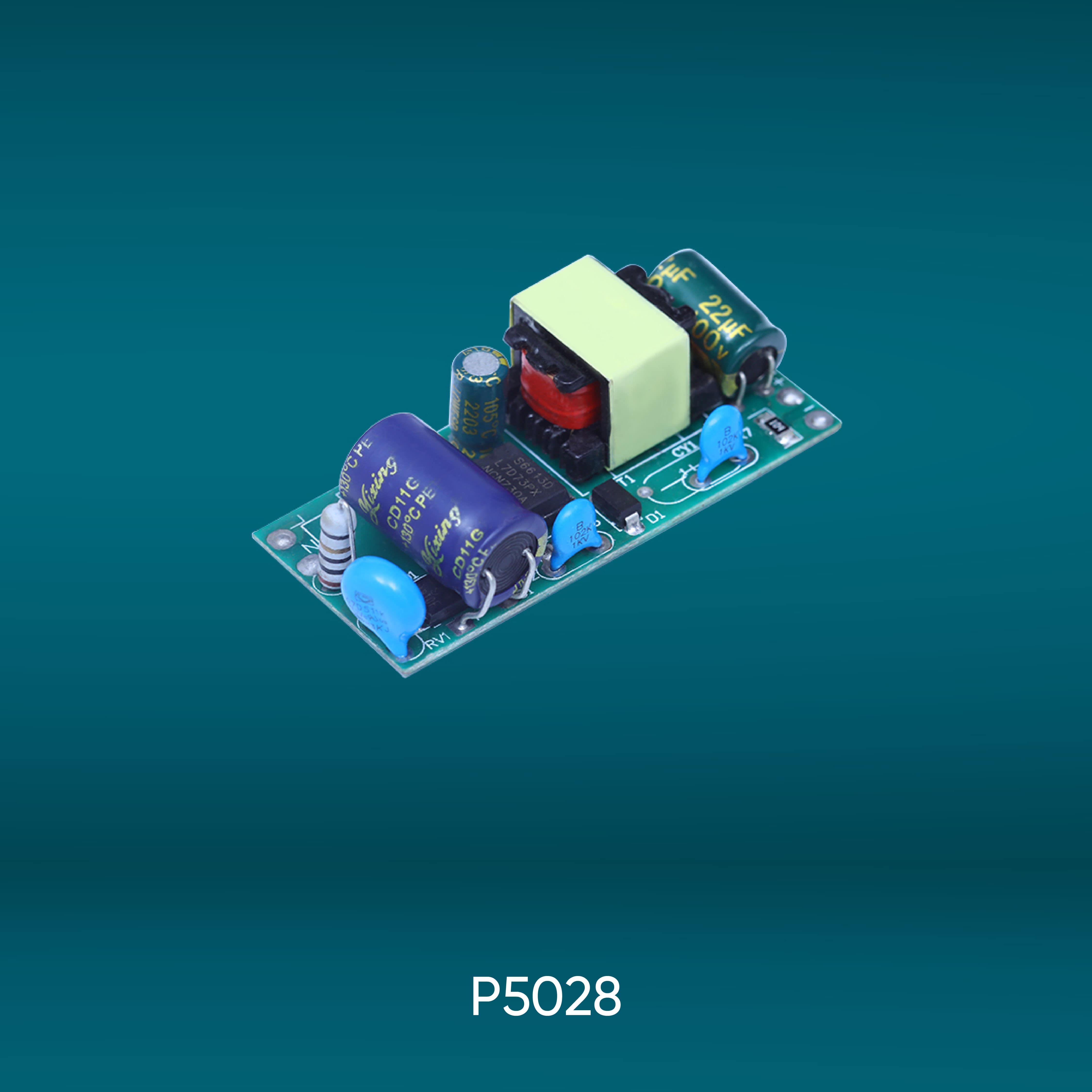

12-18W Isolated Driver (LPF)
Driver Details:
- Wattage – 12-18W (P5028)
- Input Voltage – 85V - 300V
- Output Voltage – 36V - 60V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Length(L*B*H*) – 51.5*23*15.5mm
- Application – Panel Lights, Downlights, COB Lights
Download Catalouge

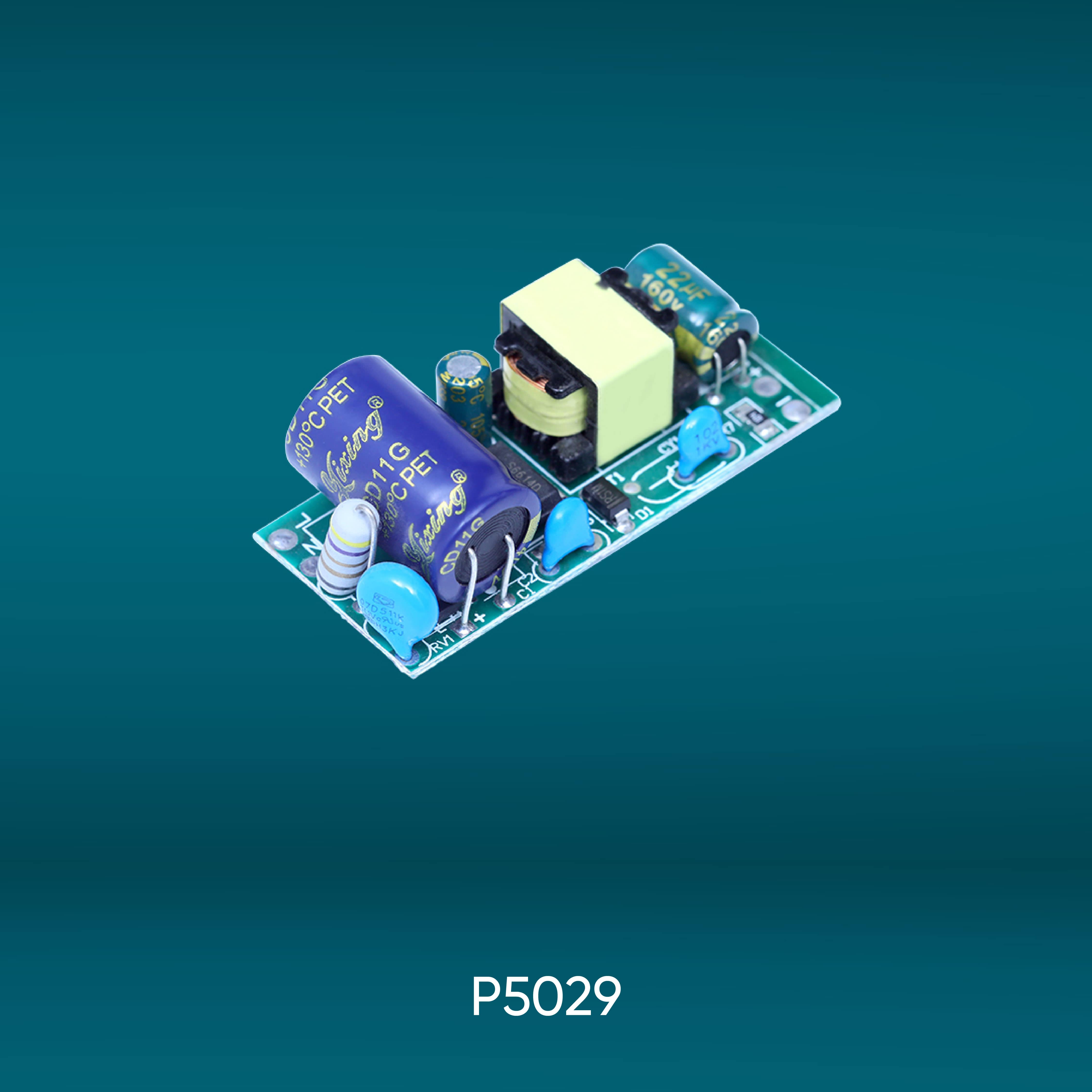

18-24W Isolated Driver (LPF)
Driver Details:
- Wattage – 18 -24W (P5029)
- Input Voltage – 85V - 300V
- Output Voltage – 54V - 80V
- Output Current – 300mA
- Efficiency ≥ 8%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Length(L*B*H*) – 51.5*23*17mm
- Application – Panel Lights, Downlights, COB Lights
Download Catalouge

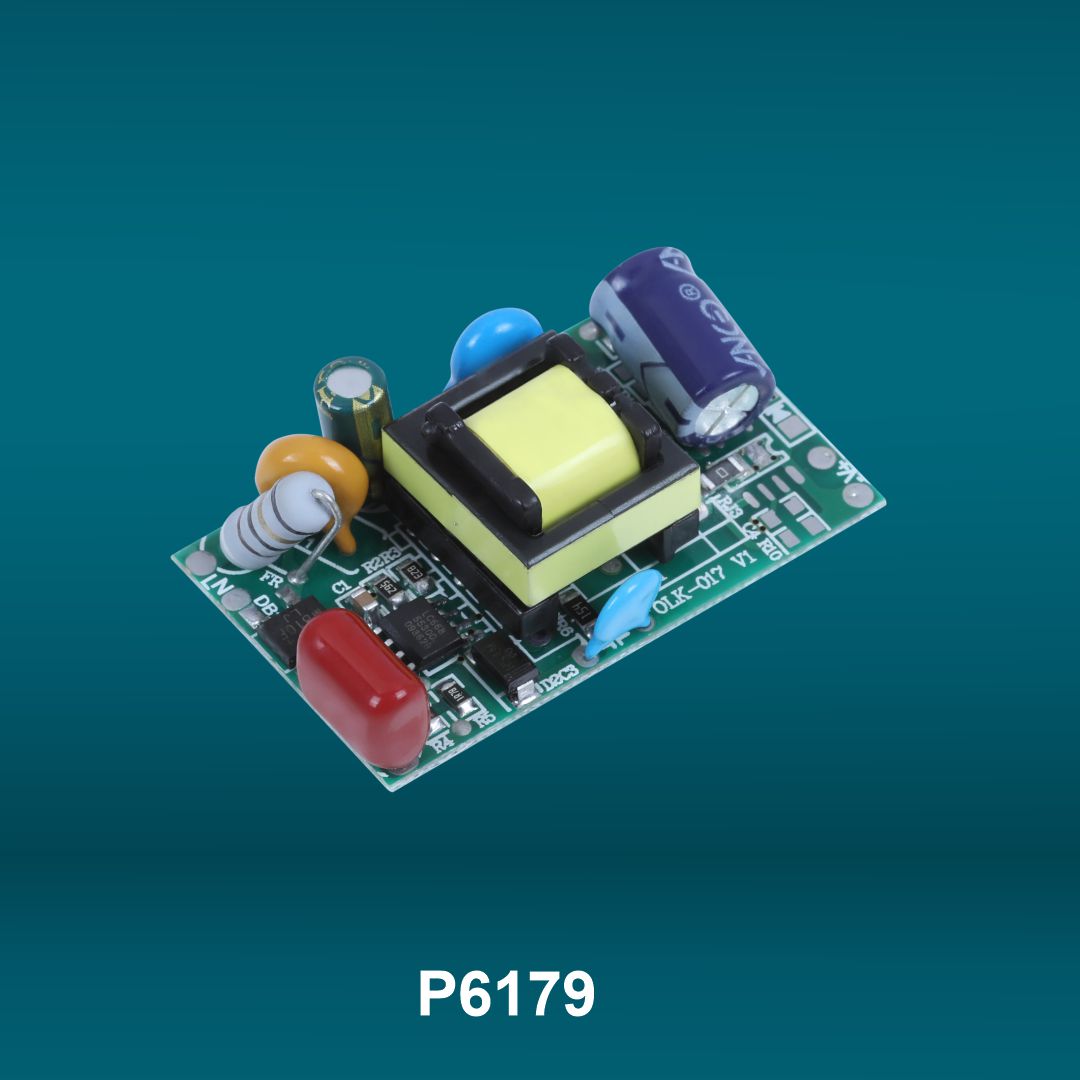

8-12W Isolated Driver (HPF)
Driver Details:
- Wattage – 8 - 12W (P6179)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 22V - 38V
- Output Current – 300mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD – < 10%
- Surge Protection – Upto 3KV
- Features - Short Circuit Protection, Over Load Protection
- Length(L*B*H*) – 42.5*25*15mm
- Application – Indoor LED Lighting.
Download Catalouge

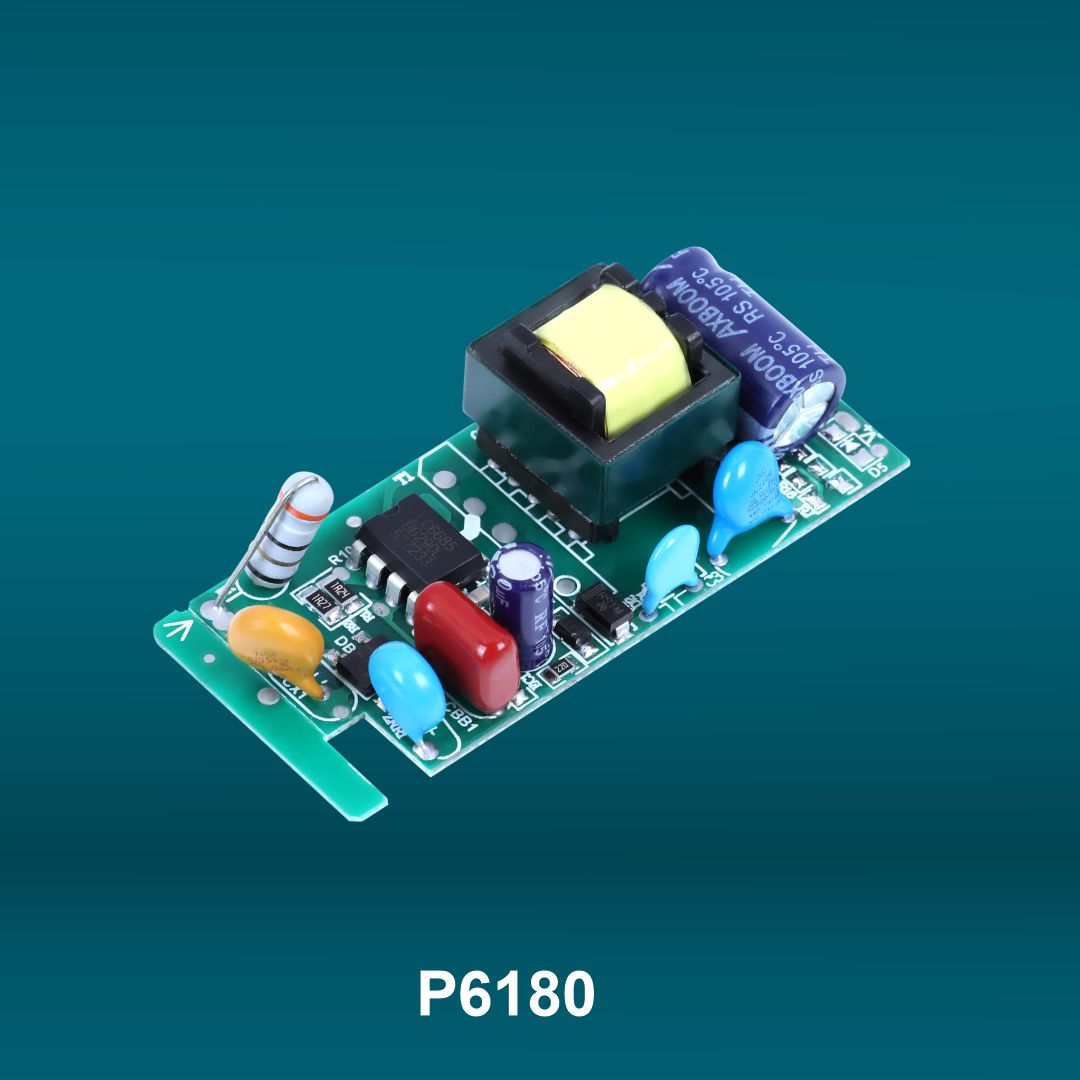

12 - 18W Isolated Driver (HPF)
Driver Details:
- Wattage – 12 -18W (P6180)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 34V - 56V
- Output Current – 300mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV
- Features : Short Circuit Protection, Over Load Protection
- Length(L*B*H*) – 57*27*18mm
- Application – Indoor LED Lighting.
Download Catalouge

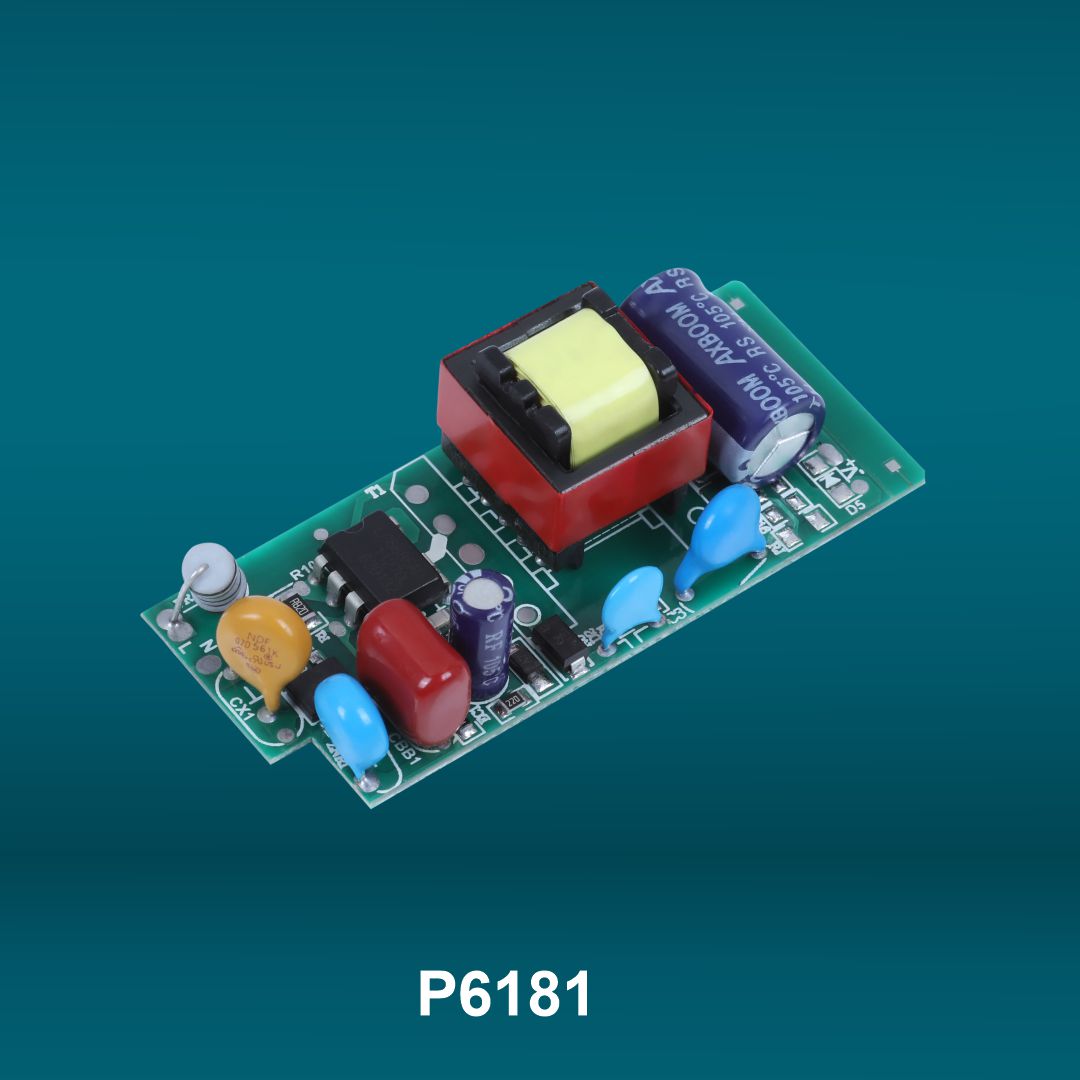

18-24W Isolated Driver (HPF)
Driver Details:
- Wattage – 18 -24W (P6181)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 52V - 74V
- Output Current – 300mA
- Efficiency ≥ 88%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 57*27*18mm
- Application – Indoor LED Lighting.
Download Catalouge

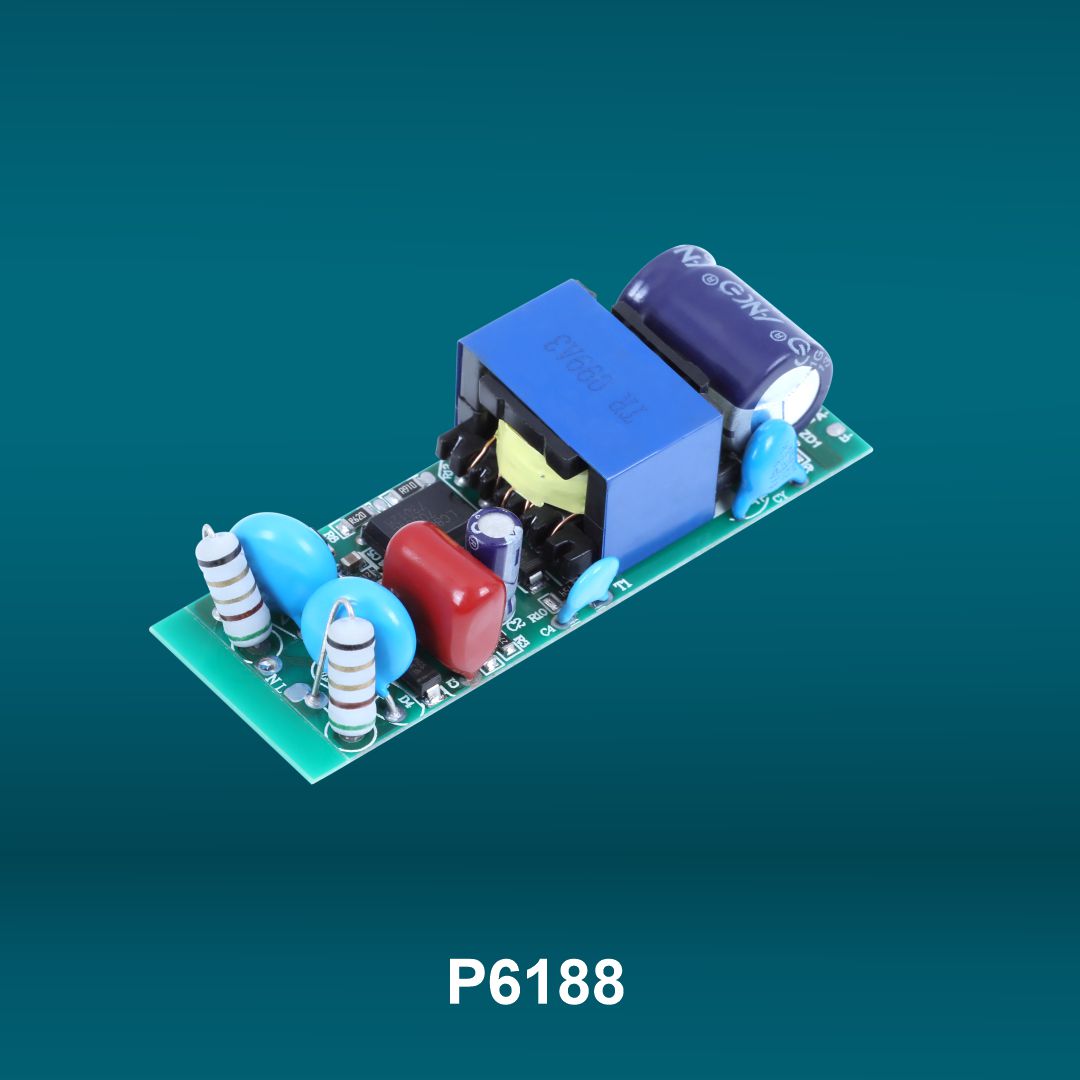

24-30W Isolated Driver (HPF)
Driver Details:
- Wattage – 24 -30W (P6188)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 70V - 90V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4.5KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*24*18mm
- Application – Indoor LED Lighting.
Download Catalouge

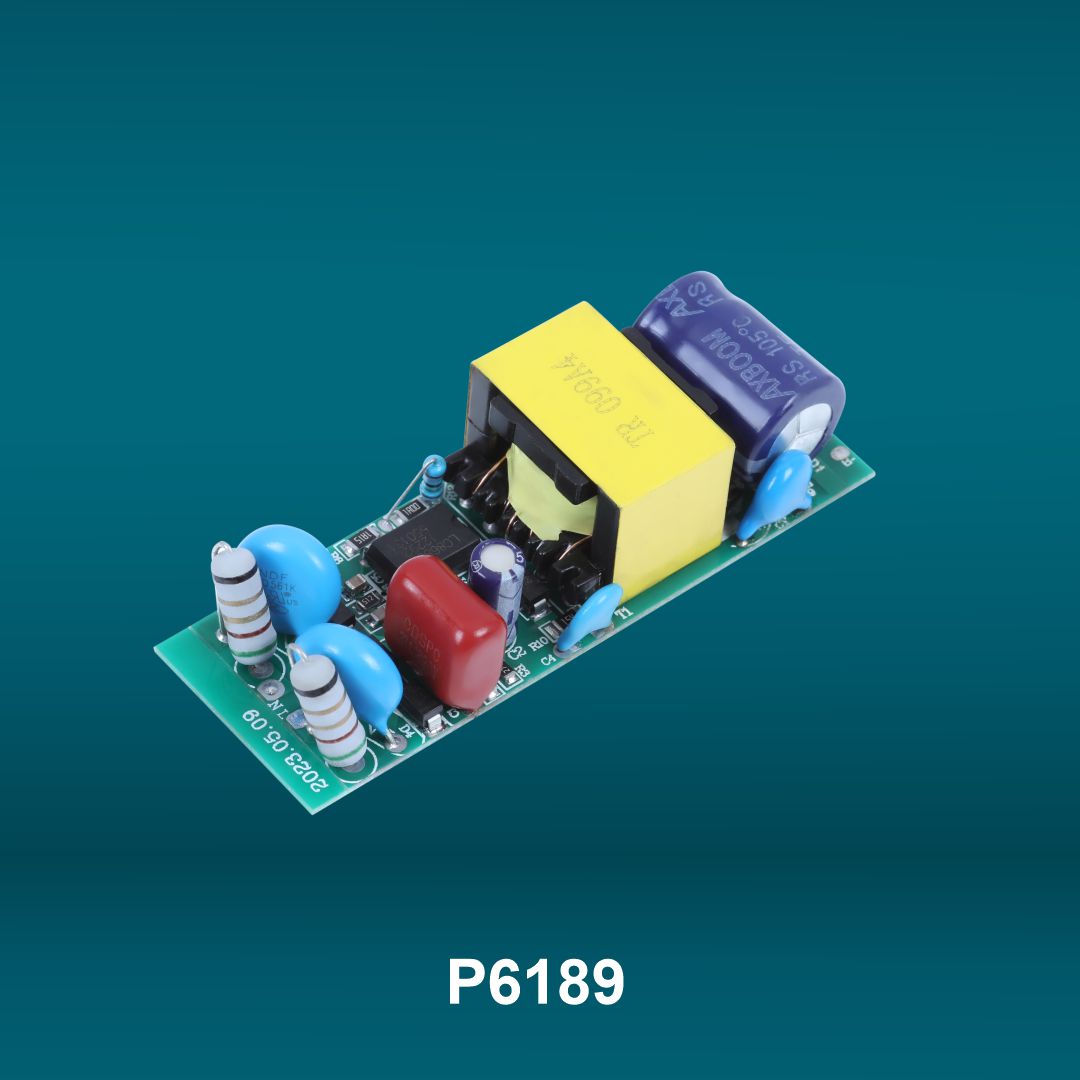

24-30W Isolated Driver (HPF)
Driver Details:
- Wattage – 24 - 30W (P6189)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 34V - 44V
- Output Current – 600mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4.5KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*24*18mm
- Application – Indoor LED Lighting.
Download Catalouge

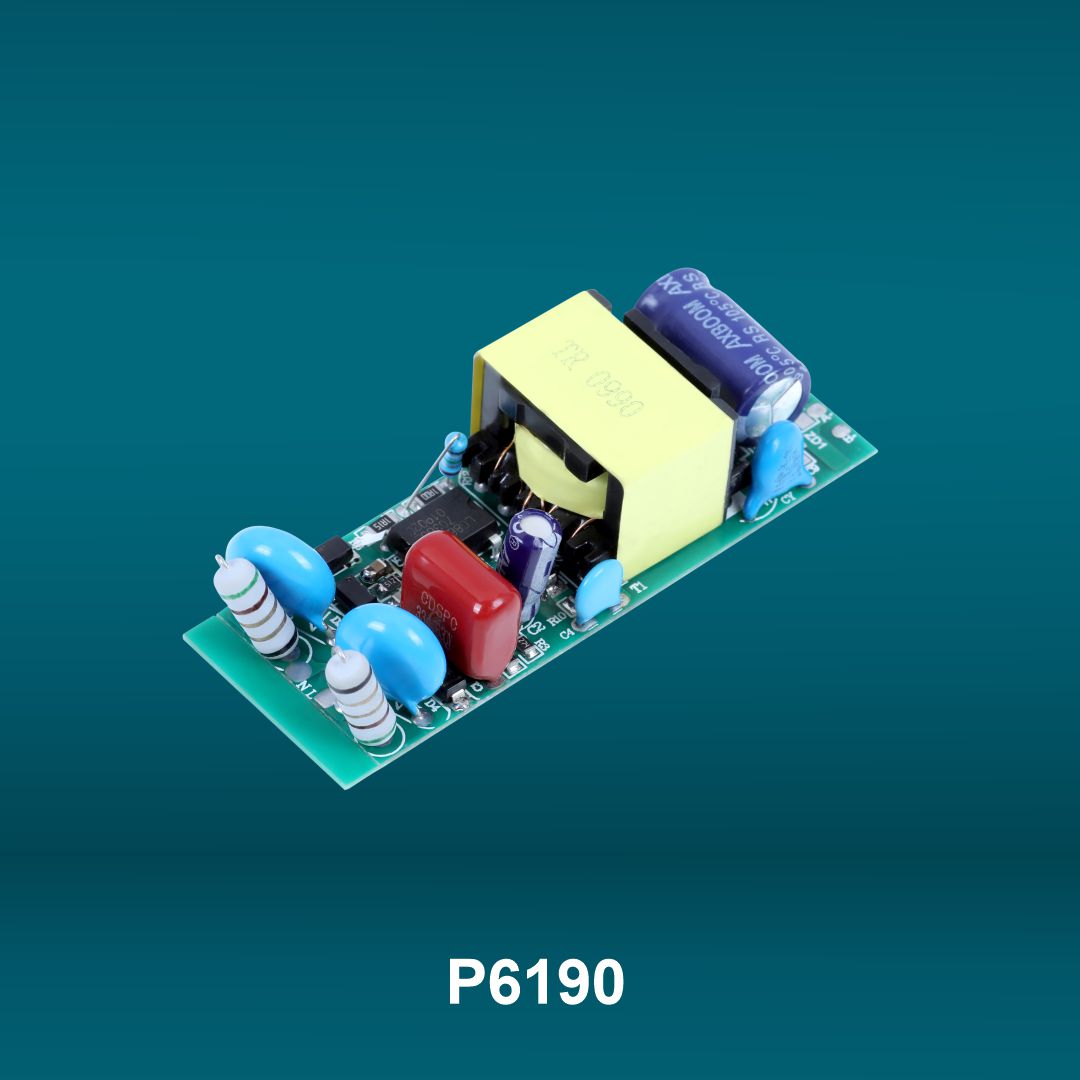

24-36W Isolated Driver (HPF)
Driver Details:
- Wattage – 24 -36W (P6190)
- Input Voltage – 85V - 265V AC 50 - 60Hz
- Output Voltage – 24V - 38V
- Output Current – 900mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 4.5KV Features : Short Circuit Protection, Over Load Protection >
- Length(L*B*H*) – 64*24*18mm
- Application – Indoor LED Lighting.
Download Catalouge
