Driver Details:

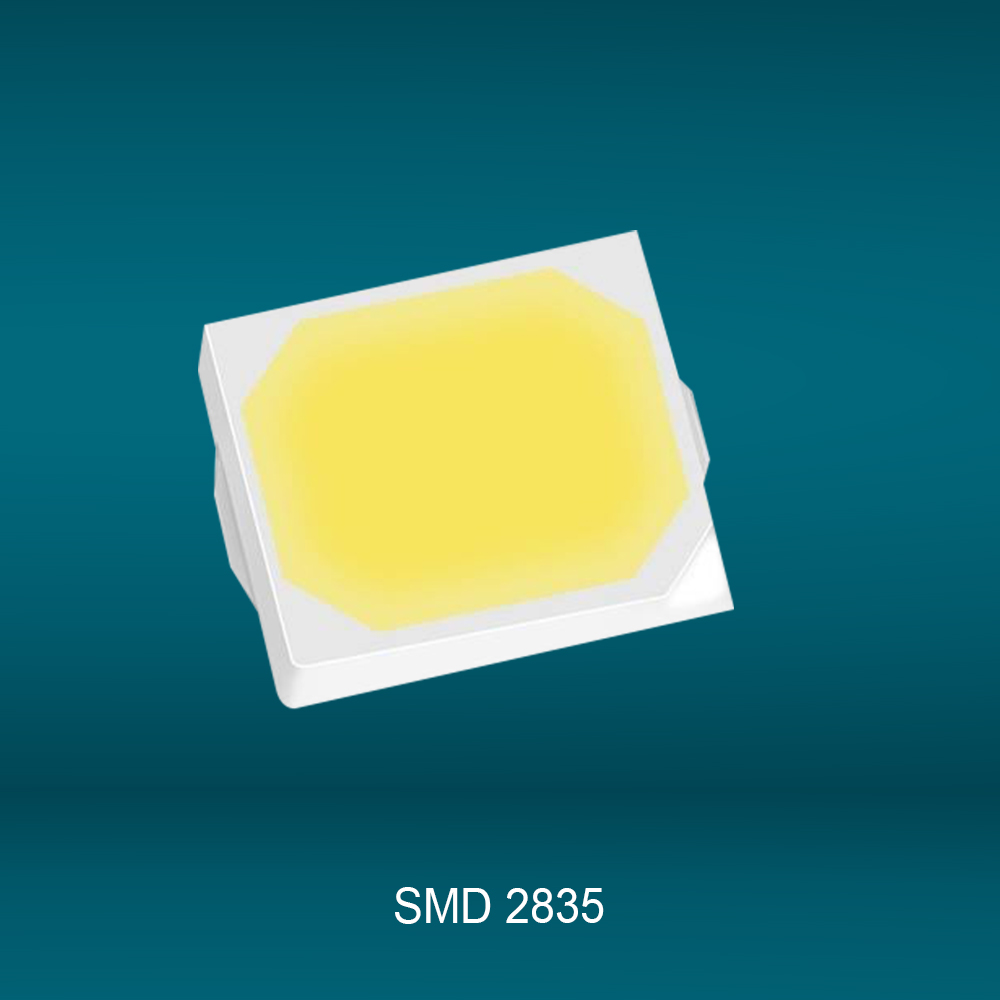

• Led Details: – 2835 Package
• LED Make – Nation Star
• LED Specifications –2.9V ~ 3.1V 60mA (0.2w) / 9V ~ 9.1V 100mA (1w)
• Lumens (Lms) – 26-28LM / 28-30LM (0.2w) / 135LM – 145LM (1w)
• CCT – 3000K / 4500K / 6500K / 7000K / 7500K
• Dimensions – (L x W) 2.8mm x 3.5mm
• Max Current Limit – 75ma (0.2w) / 120ma (1w)
• Typical Current – 60mA (0.2w) / 100mA (1w)
• Application – Led Batten / Downlights/ Led Flood Lights / Led Street Lights
