3 In 1 Drivers ( CCT CHANGING )
Driver Components Powered By

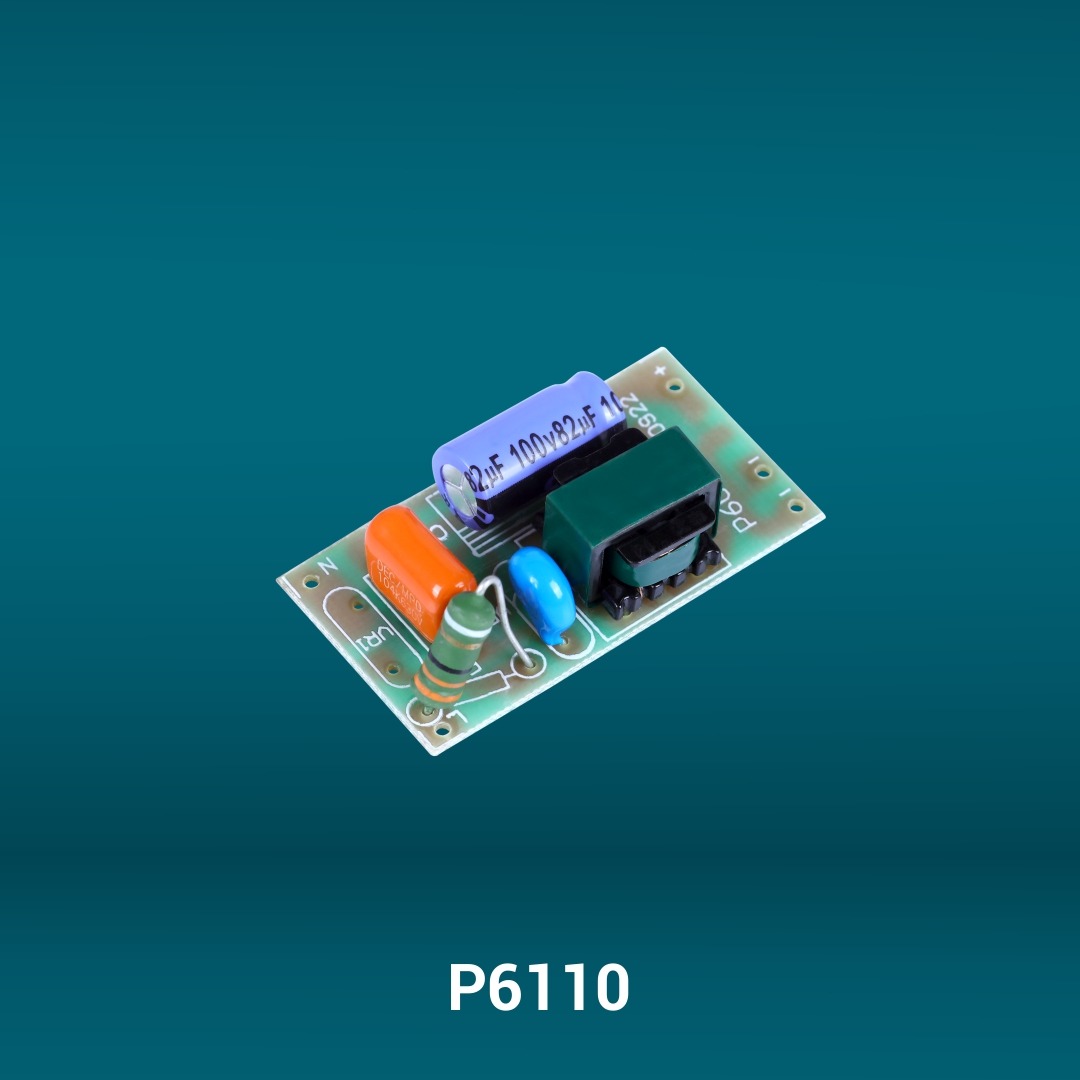

8-15W 3 in 1 CCT Non Isolated Driver (HPF)
 8-15W - 3 in 1.jpeg)
Driver Details:
- Wattage – 8-15W 3 in 1 CCT (P6110)
- Input Voltage – 100V - 300V
- Output Voltage – 24V - 48V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3KV
- THD: Less than 15%
- Size (L*B*H*) - 44.25*24.15*13mm
- Application – LED Panel, Downlight , COB Light
Download Catalouge
8-24W 3 in 1 CCT Non Isolated Driver (HPF)
 8-24W - 3 in 1.jpeg)
Driver Details:
- Wattage – 8-24W 3 in 1 CCT (P4872)
- Input Voltage – 100V - 300V
- Output Voltage – 24V - 78V
- Output Current – 300mA
- Efficiency ≥ 85%
- PFC > 0.95
- Surge Protection – Upto 3KV THD: Less than 15%
- Size (L*B*H*) - 45*24*15mm
- Application – LED Panel, Downlight , COB Light
Download Catalouge

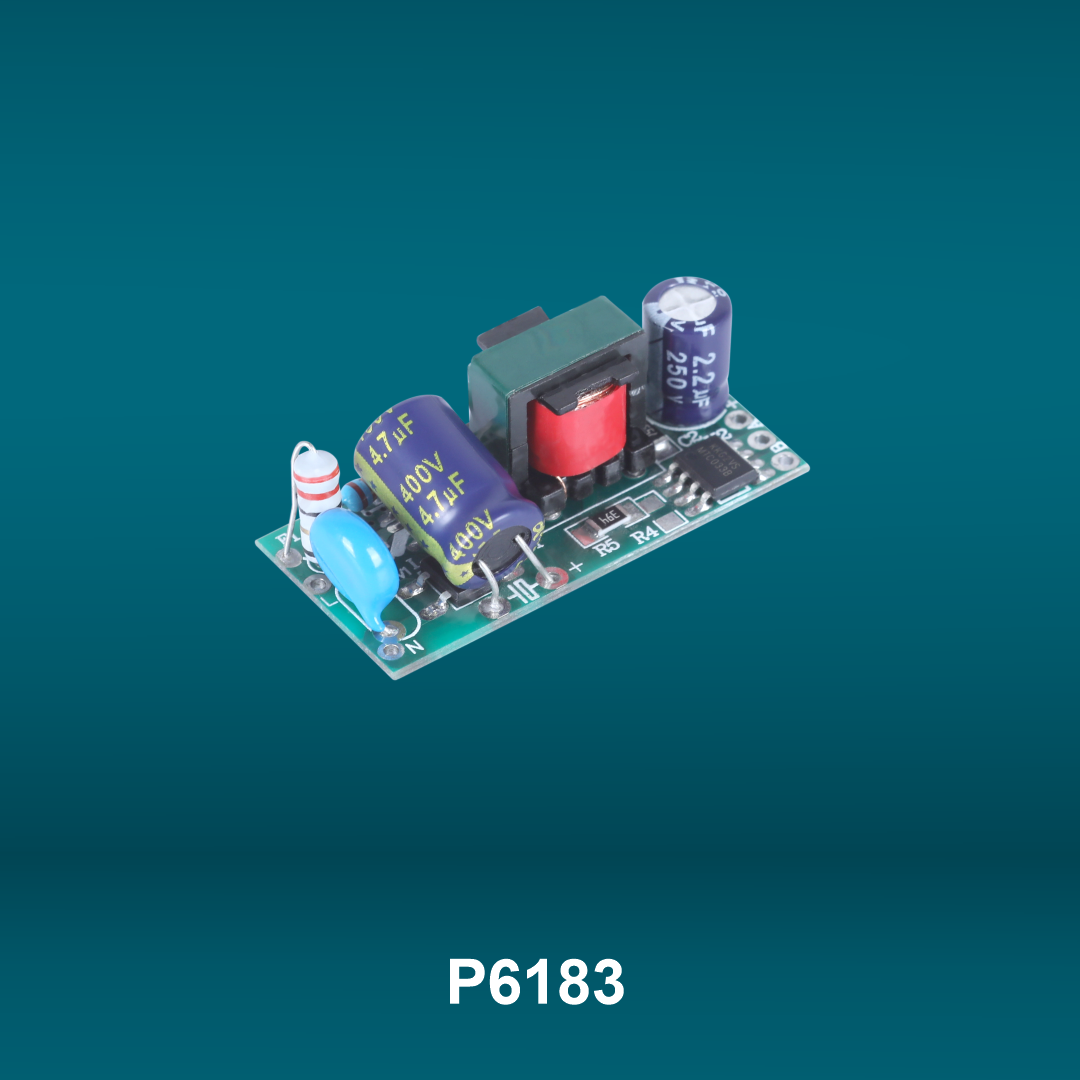

8-18W 3 in 1 CCT Non Isolated Driver (LPF)
.png)
Driver Details:
- Wattage – 8-18W (P6183)
- Input Voltage – 175V-265V
- Output Voltage – 24V - 60V
- Output Current – 300mA ±5%
- Efficiency ≥ 88%
- PFC> 0.5
- Surge Protection – Upto 2.5KV
- Size (L*B*H*) - 36.8*17*13.5 mm
- Application – LED Panel, Downlight.
Download Catalouge

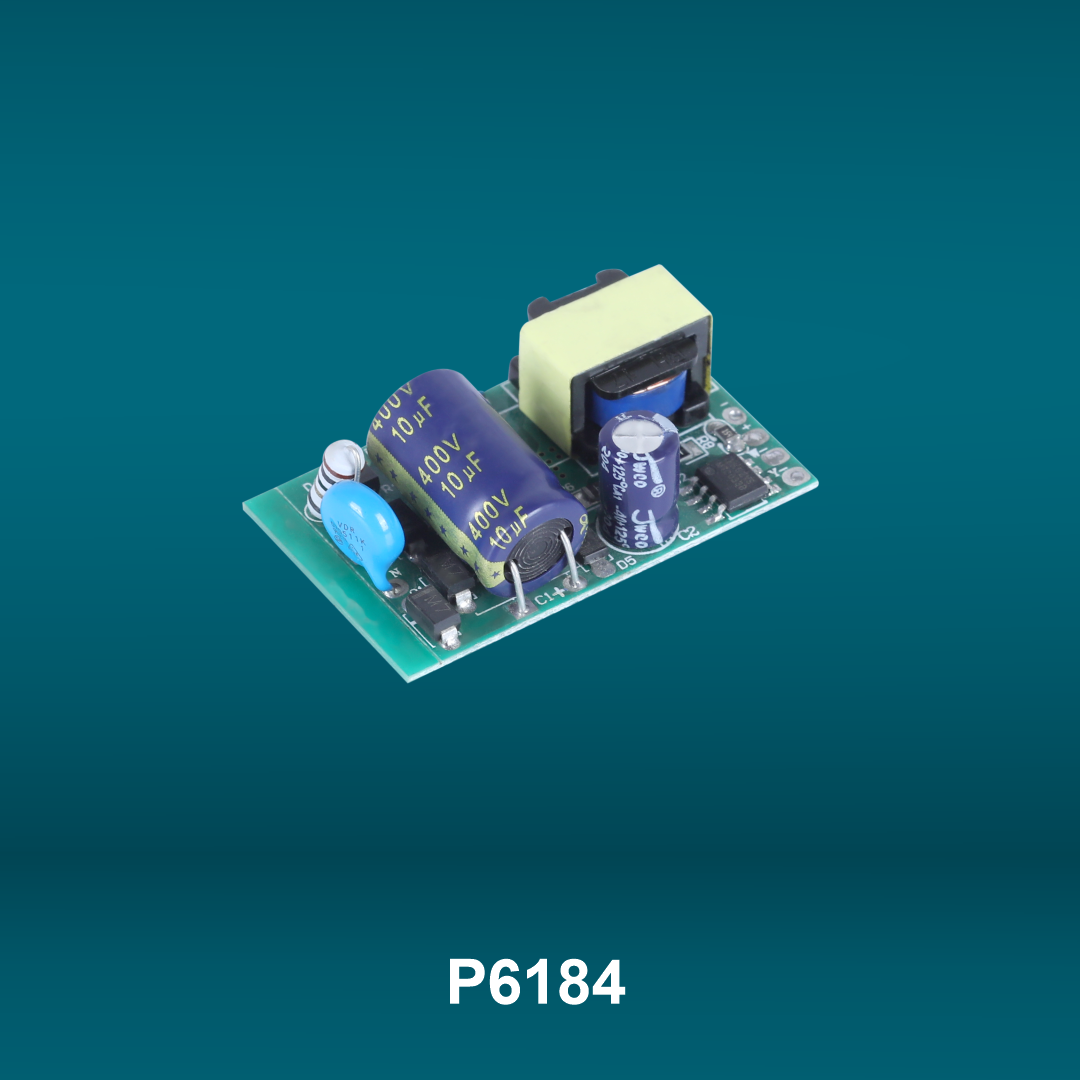

18-24W 3 in 1 CCT Non Isolated Driver (LPF)
.png)
Driver Details:
- Wattage – 18-24W (P6184)
- Input Voltage – 175V-265V
- Output Voltage – 54V - 75V
- Output Current – 300mA ±5%
- Efficiency ≥ 88%
- PFC> 0.5
- Surge Protection – Upto 2.5KV
- Size (L*B*H*) - 37*24*13.6 mm
- Application – LED Panel, Downlight.
Download Catalouge

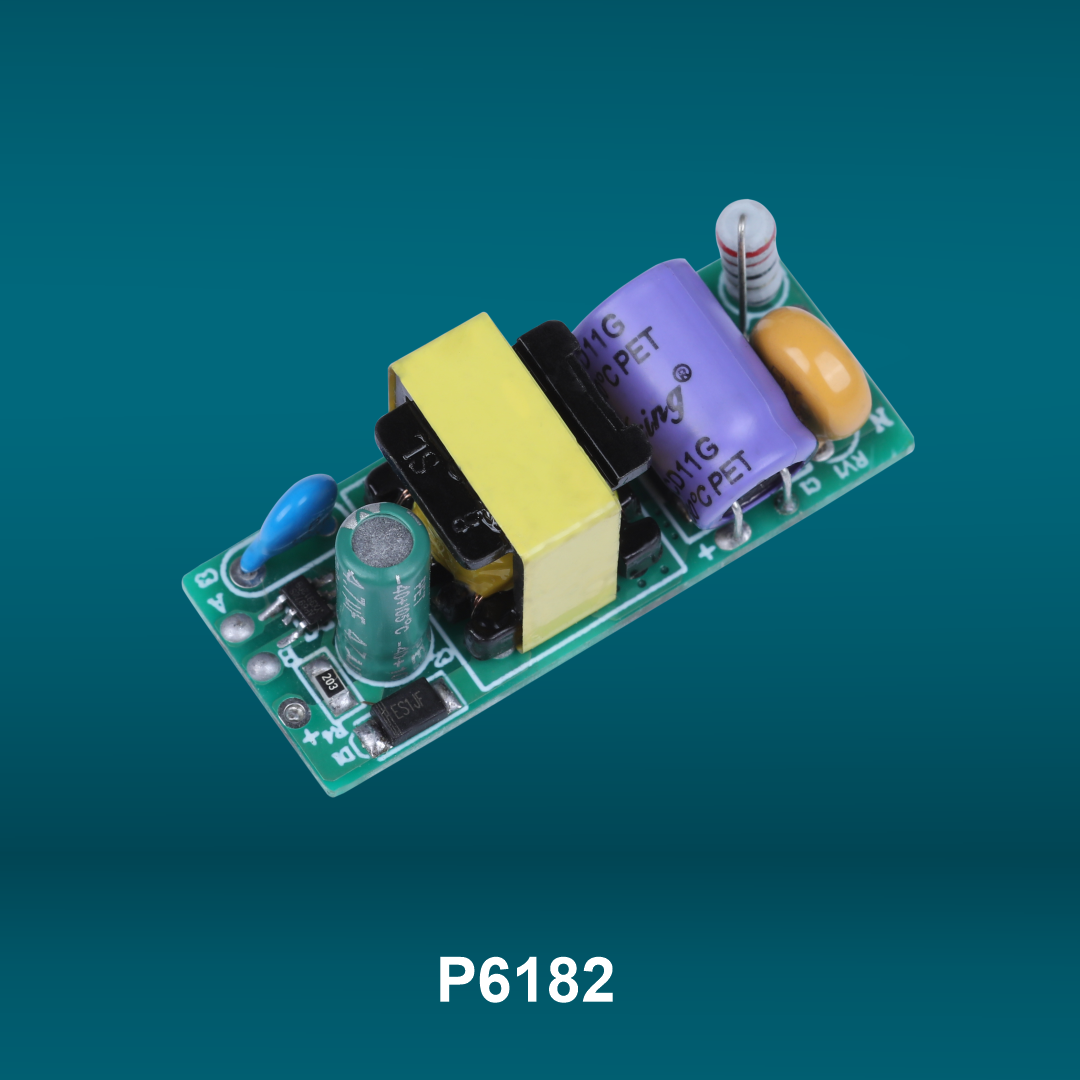

4-7W 3 in 1 CCT Isolated Driver (LPF)
Driver Details:
- Wattage – 4 - 7W (P6182)
- Input Voltage – 85V - 265V
- Output Voltage – 12V - 24V
- Output Current – 300mA ±5%
- Efficiency ≥ 80%
- PFC > 0.5
- Surge Protection – Upto 2.5KV
- Length(L*B*H*) – 38*15.4*13.5mm
- Application – LED Panel, Downlight
Download Catalouge

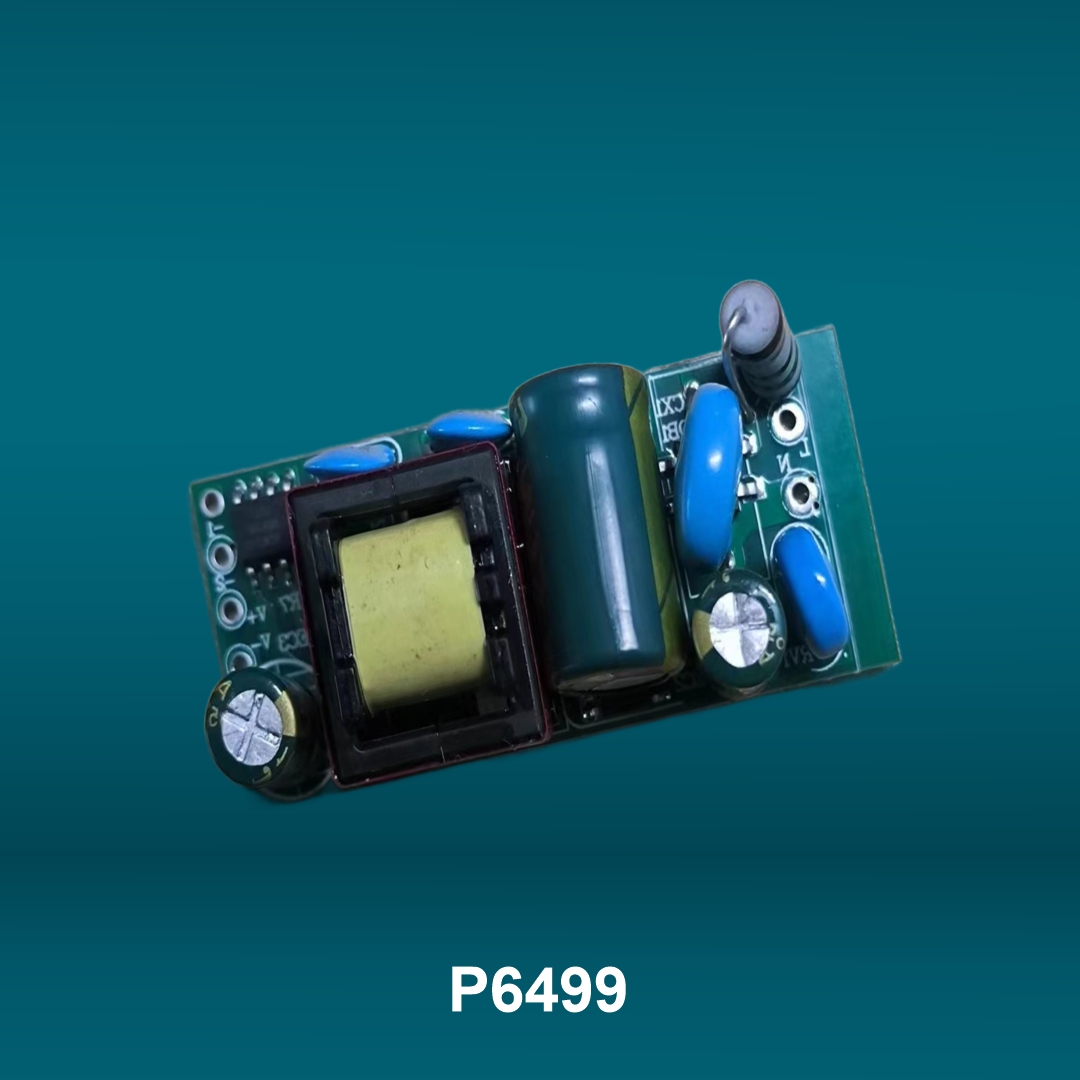

8-12W 3 in 1 CCT Isolated Driver (LPF)
Driver Details:
- Wattage – 8 - 12W (P6499)
- Input Voltage – 175 - 265V
- Output Voltage – 24V - 36V
- Output Current – 300mA ±5%
- Efficiency ≥ 80%
- PFC > 0.5
- Surge Protection – Upto 3KV
- Length(L*B*H*) – 46.5*23.6*15mm
- Application – LED Panel, Downlight
Download Catalouge

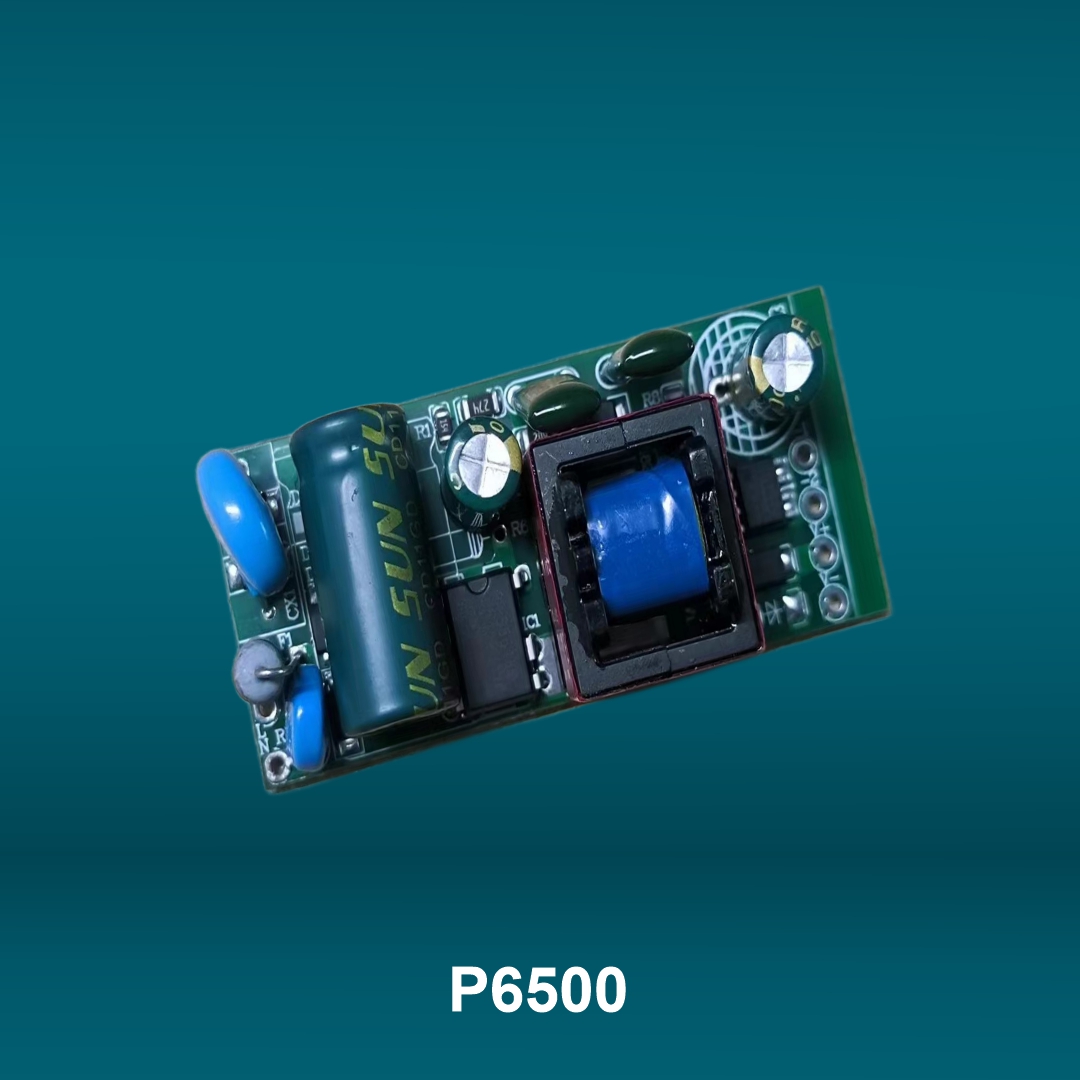

8-12 3 in 1 CCT Isolated Driver (LPF)
Driver Details:
- Wattage – 12 - 18W (P6500)
- Input Voltage – 175 - 265V
- Output Voltage – 36V - 54V
- Output Current – 300mA ±5%
- Efficiency ≥ 80%
- PFC > 0.5
- Surge Protection – Upto 3KV
- Length(L*B*H*) – 53.5*23.6*18mm
- Application – LED Panel, Downlight
Download Catalouge

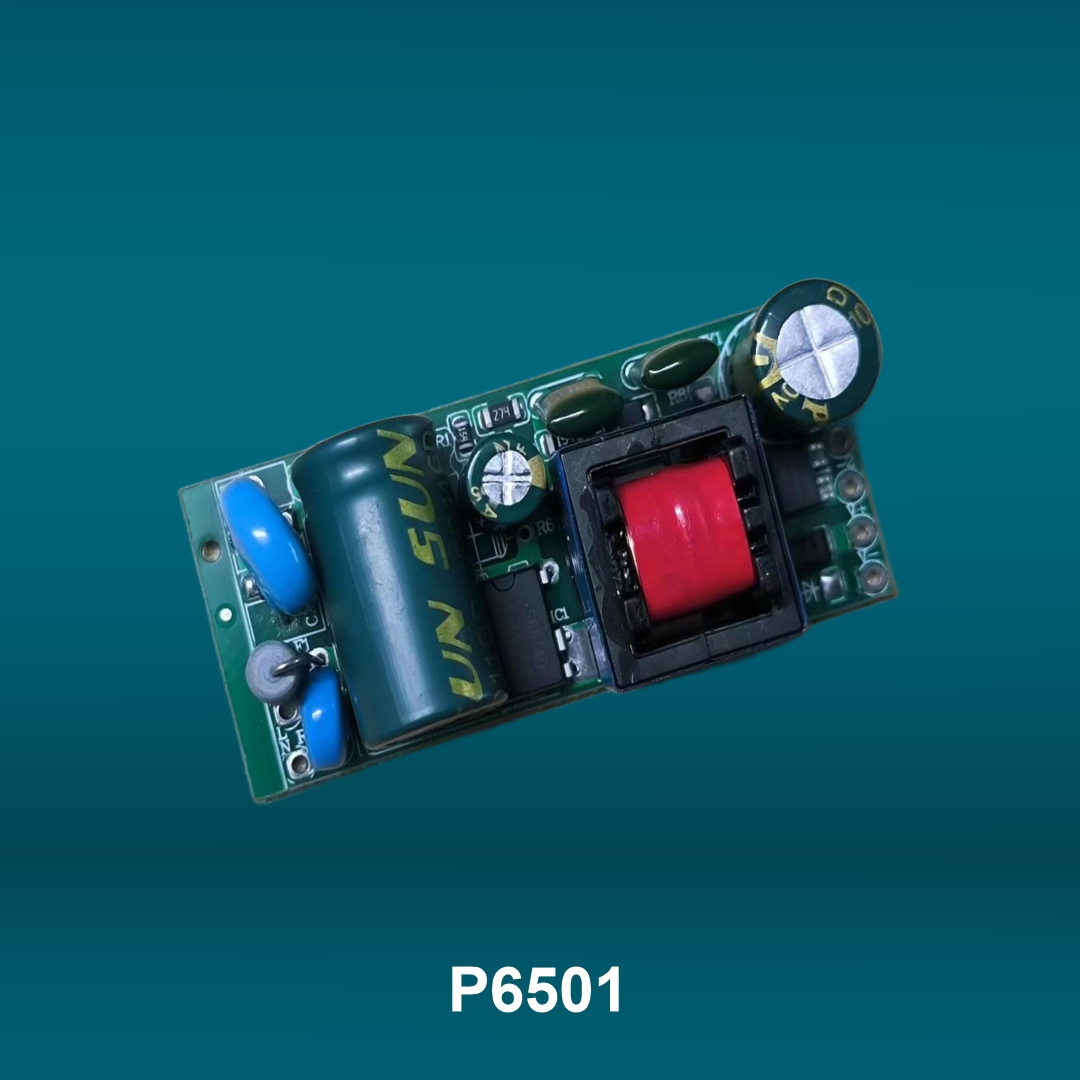

18-24W 3 in 1 CCT Isolated Driver (LPF)
Driver Details:
- Wattage – 18 - 24W (P6501)
- Input Voltage – 175 - 265V
- Output Voltage – 54V - 72V
- Output Current – 300mA ±5%
- Efficiency ≥ 80%
- PFC > 0.5
- Surge Protection – Upto 3KV
- Length(L*B*H*) – 53.5*23.6*18mm
- Application – LED Panel, Downlight
Download Catalouge
