Adjustable Current Driver
Driver Components Powered By

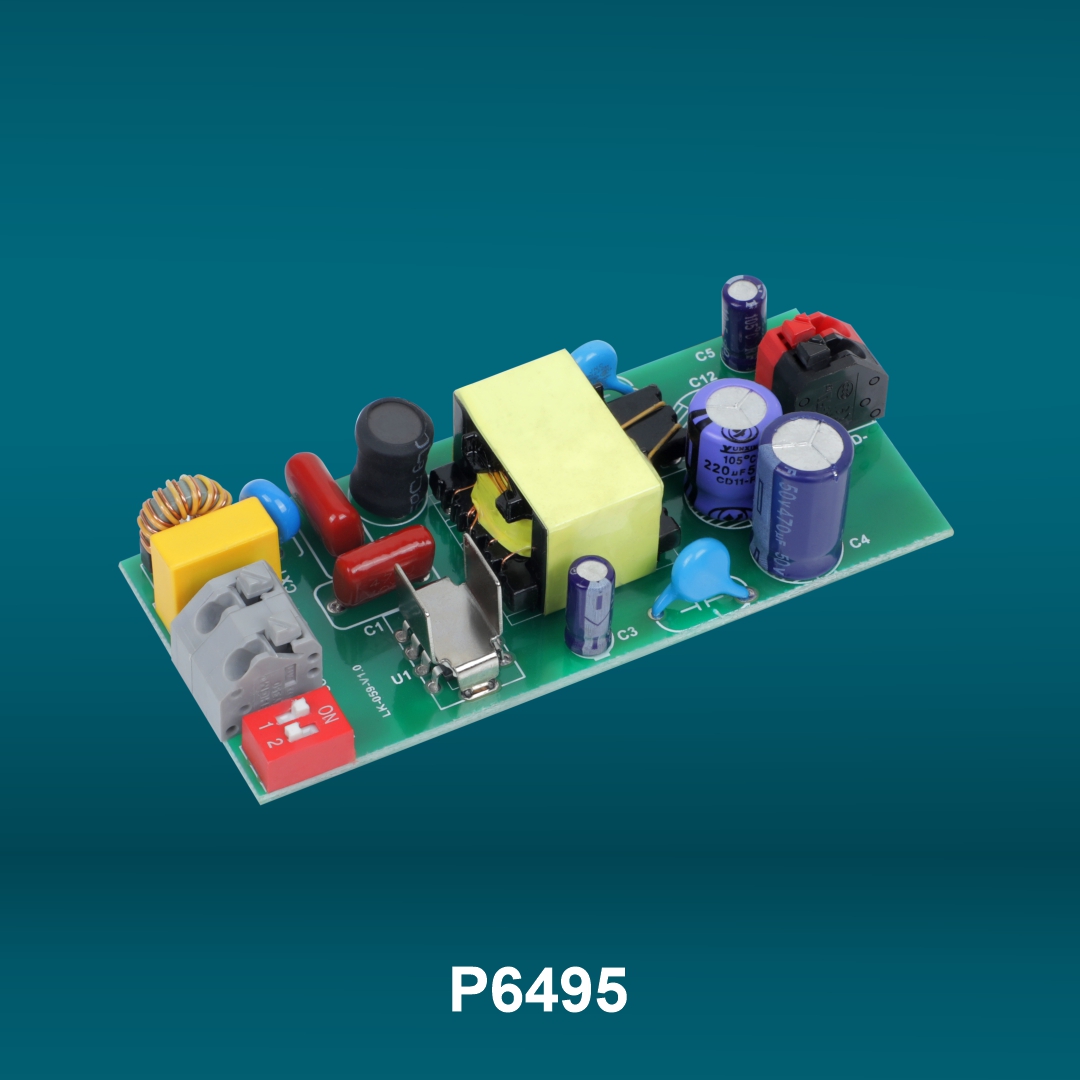

20W (6-18W) Adjustable Current Driver
Driver Details:
- Wattage – 20W (6-18W) (P6495)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 27V - 42V
- Output Current – 200-350mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 15%
- Surge Protection – Upto 3KV
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Current Protection, Over Temperature Protection.
- High Voltage – 400V Sustainable for 2Hrs
- Easily Changing the current by DIP Switch
- Easy Installation with Push fit Connectors
- Length(L*B*H*) – 84.2*36*20mm
- Application – Indoor Office Lighting, Decorative Lighting, Commercial Lighting, Home Lighting.
- Certifide By – ENEC, CB, CE, ROM, CCC
Download Catalouge

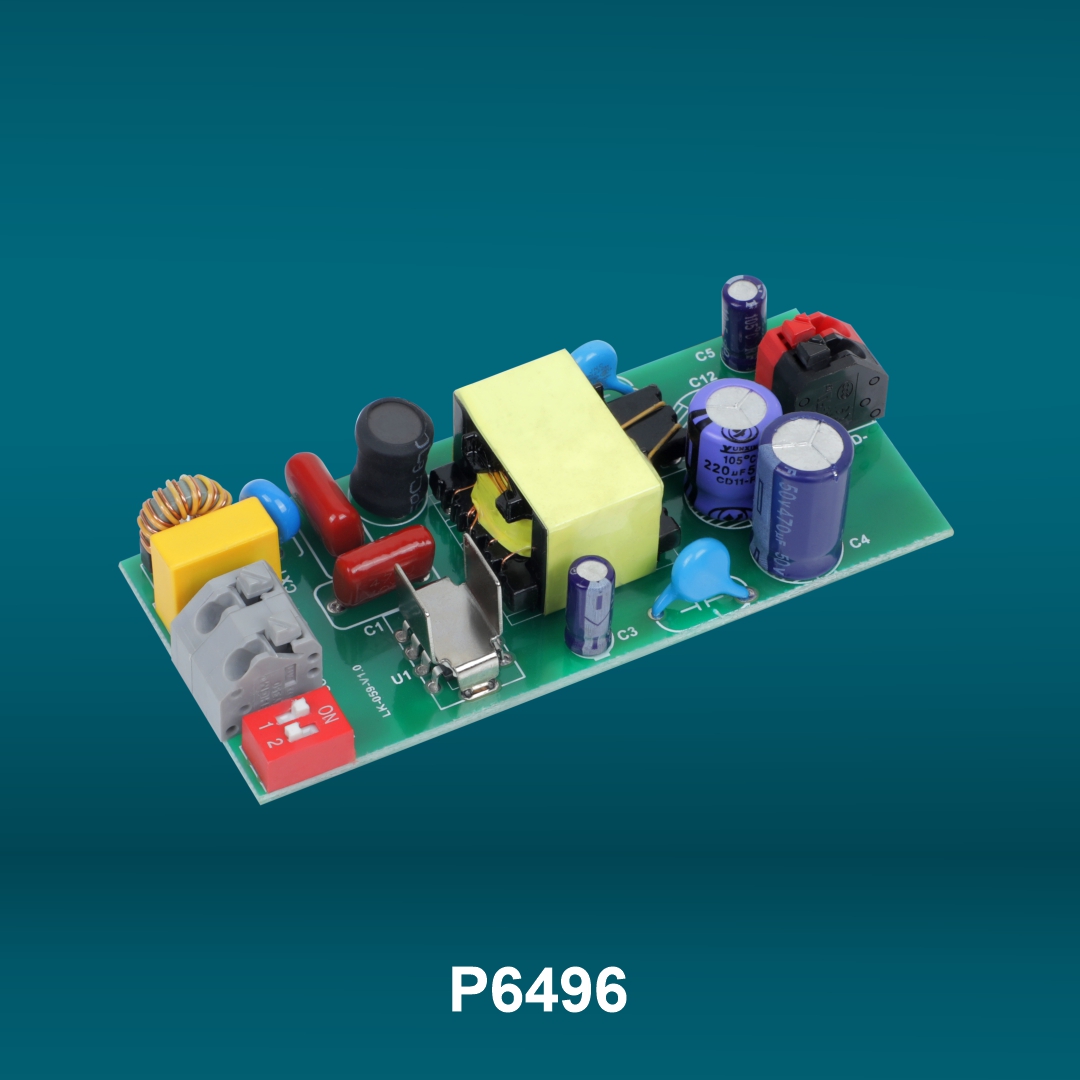

27W (12-25W) Adjustable Current Driver
Driver Details:
- Wattage – 27W (12-25W) (P6496)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 27V - 42V
- Output Current – 400-550mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 3KV
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Current Protection, Over Temperature Protection.
- High Voltage – 400V Sustainable for 2Hrs
- Easily Changing the current by DIP Switch
- Easy Installation with Push fit Connectors
- Length(L*B*H*) – 84.2*36*20mm
- Application – Indoor Office Lighting, Decorative Lighting, Commercial Lighting, Home Lighting.
- Certifide By – ENEC, CB, CE, ROM, CCC
Download Catalouge

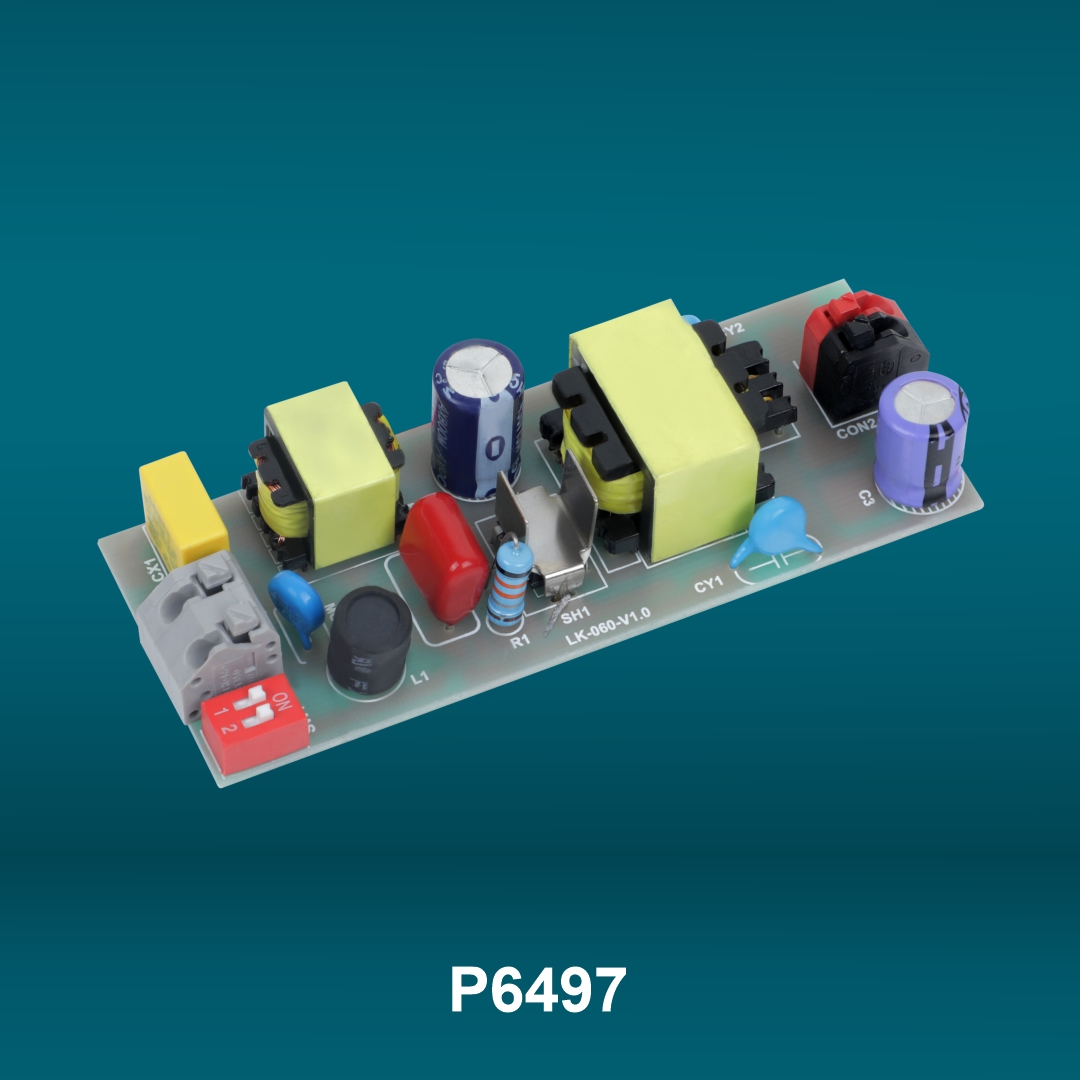

36W (18-35W) Adjustable Current Driver
Driver Details:
- Wattage – 36W (18-35W) (P6497)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 27V - 42V
- Output Current – 600-750mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 3KV
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Current Protection, Over Temperature Protection.
- High Voltage – 400V Sustainable for 2Hrs
- Easily Changing the current by DIP Switch
- Easy Installation with Push fit Connectors
- Length(L*B*H*) – 84.2*36*20mm
- Application – Indoor Office Lighting, Decorative Lighting, Commercial Lighting, Home Lighting.
- Certifide By – ENEC, CB, CE, ROM, CCC
Download Catalouge
45W (24-45W) Adjustable Current Driver
Driver Details:
- Wattage – 45W (24-45W) (P6498)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 27V - 42V
- Output Current – 800-950mA
- Efficiency ≥ 90%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 3KV
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Current Protection, Over Temperature Protection.
- High Voltage – 400V Sustainable for 2Hrs
- Easily Changing the current by DIP Switch
- Easy Installation with Push fit Connectors
- Length(L*B*H*) – 94.2*36*21mm
- Application – Indoor Office Lighting, Decorative Lighting, Commercial Lighting, Home Lighting.
- Certifide By – ENEC, CB, CE, ROM, CCC
Download Catalouge
