Water Proof Isolated Driver - Pro Series
Driver Components Powered By

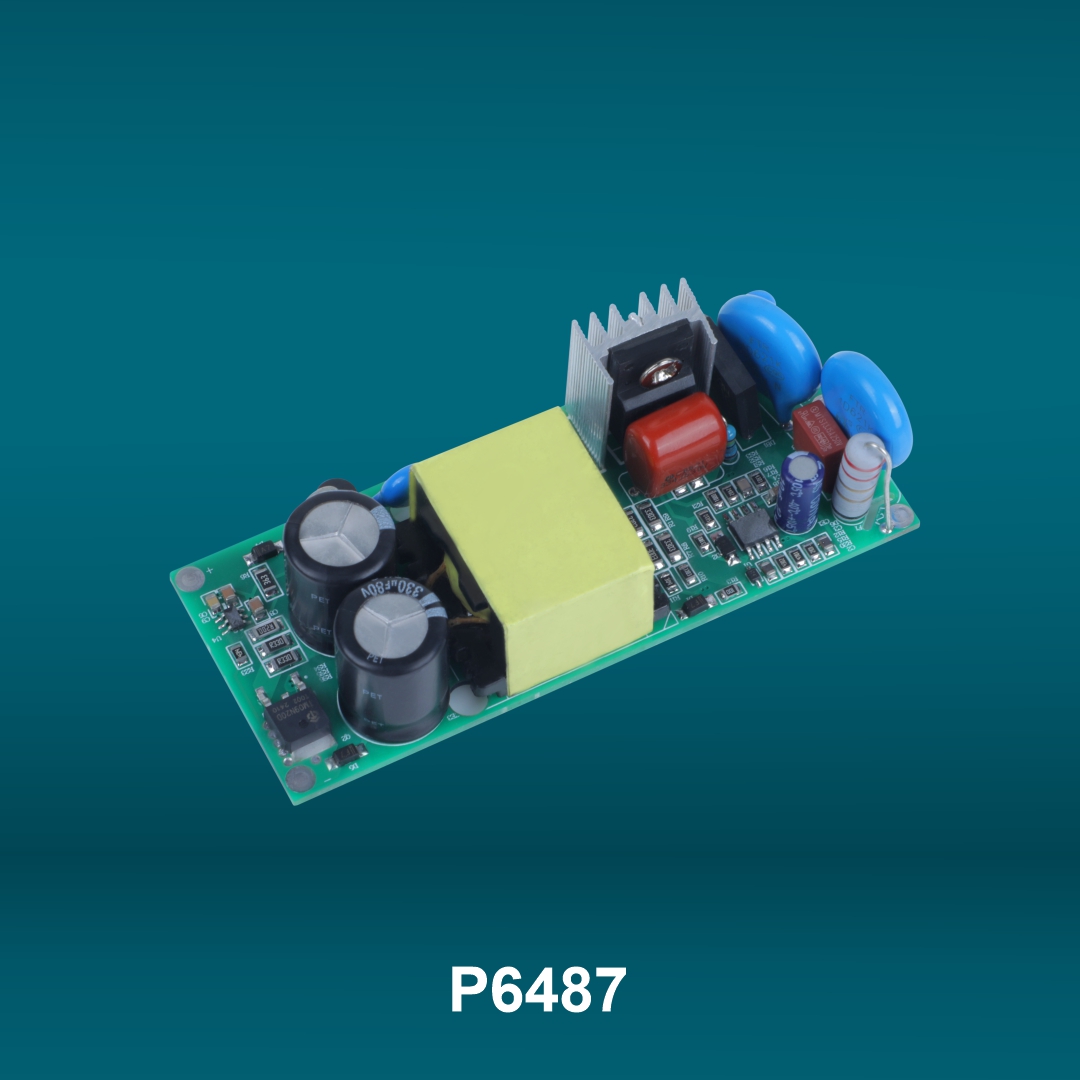

24W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 24W (P6487)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 24V - 36V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 72*28*19mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge

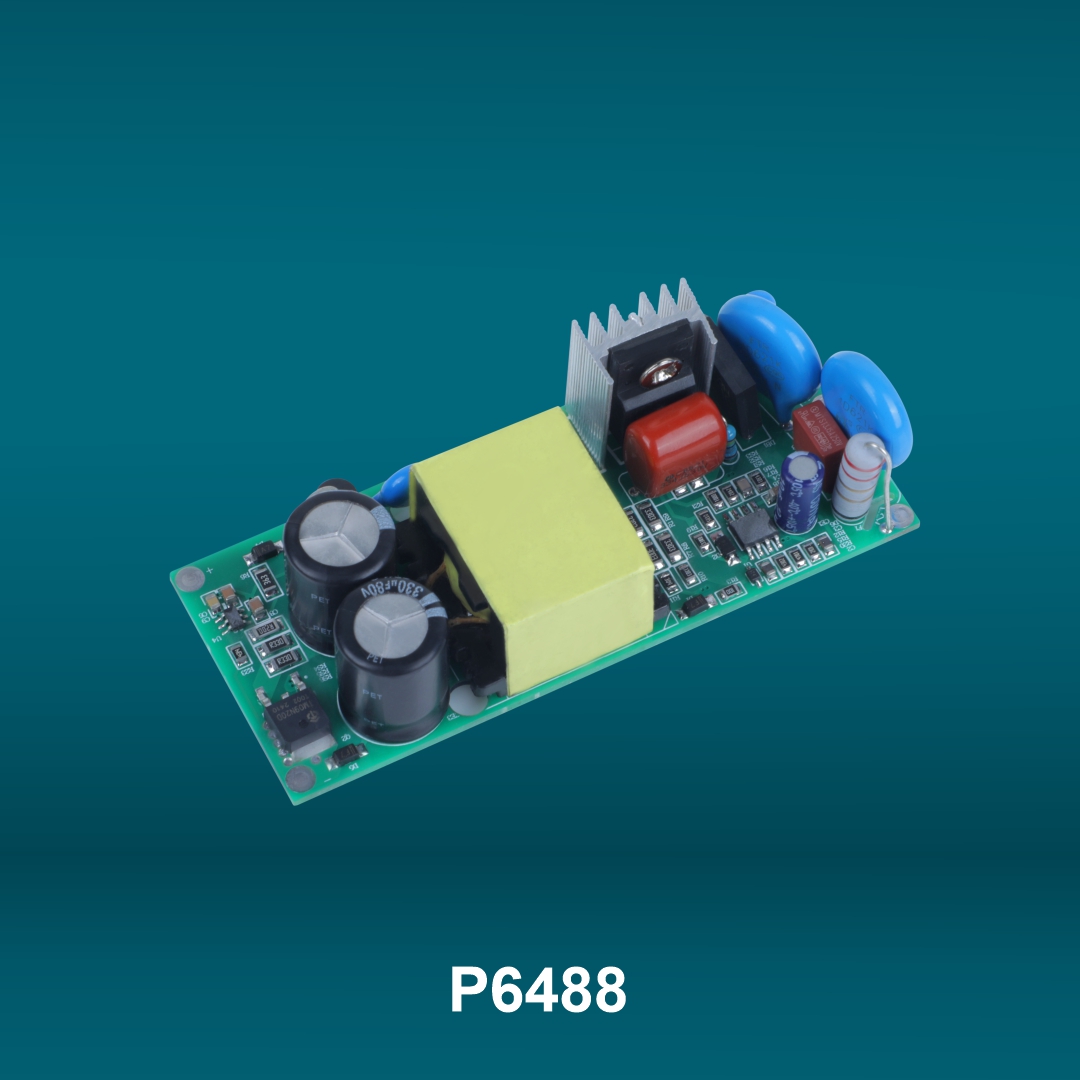

36W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 36W (P6488)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 30V - 48V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 79*35*24mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
50W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 50W (P6489)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 48V - 68V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 85*35*24mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
75W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 75W (P6490)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 87V - 108V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 120*35.5*25.5mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
100W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 100W (P6491)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 108V - 135V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 120*35.5*25.5mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge

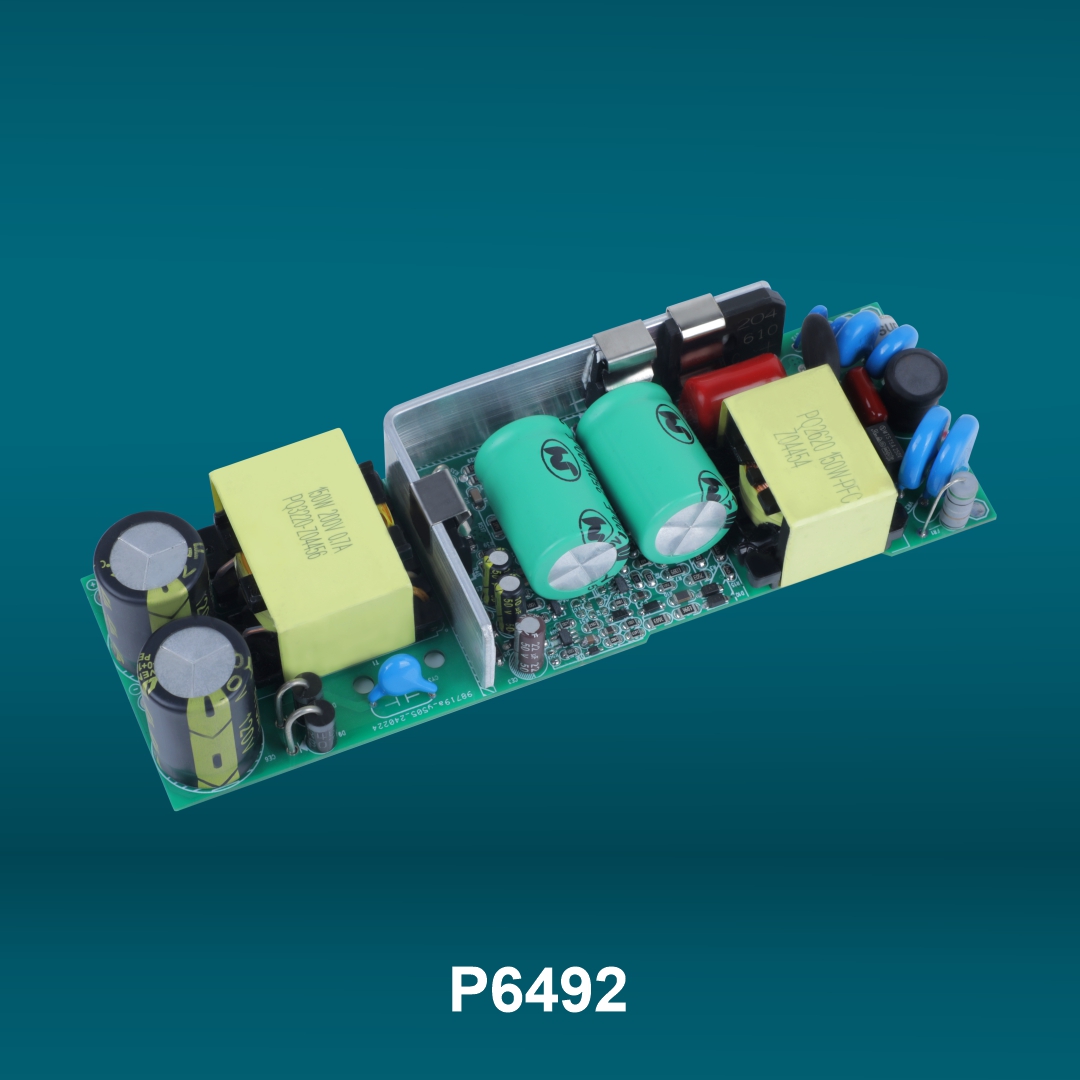

120W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 120W (P6492)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 150V - 200V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 199.5*38.5*28mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
150W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 150W (P6493)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 150V - 200V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 150*48*30mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
200W Waterproof Isolated Driver - Pro Series
Driver Details:
- Wattage – 200W (P6494)
- Input Voltage – 100V - 300V AC 50-60Hz
- Output Voltage – 175V - 260V
- Output Current – 700mA
- Efficiency ≥ 85%
- PFC > 0.95
- THD < 10%
- Surge Protection – Upto 6KV
- High Voltage – 400V Sustainable for 8Hrs
- Features : Short Circuit Protection, Over Voltage Protection, Over Load Protection, Under Voltage Protection, Over Temperature Protection
- Length(L*B*H*) – 177*48.2*29mm
- Application – Street Light, Flood Light, Facade Light, Track Light, High Bay Light, Industrial Light.
Download Catalouge
